340W 12V Sistema solare completo con caricatore della batteria MPPT da 40A DC a DC

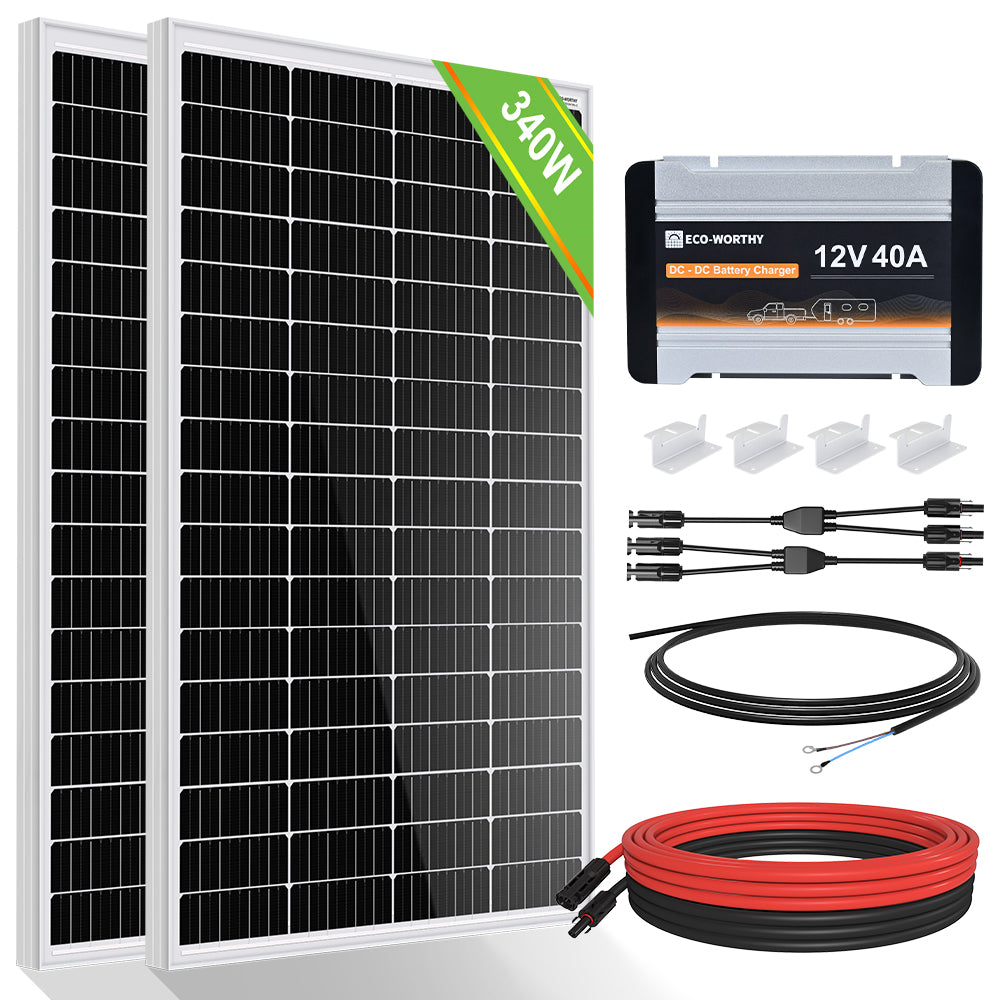

La confezione include
2x Pannello solare mono da 170W
1x Caricatore della batteria MPPT da 40A DC a DC
1x Cavo di prolunga 5M 12AWG con MC4
2x Staffa di montaggio a Z
1x Y Connettore MC4
1x Cavo vassoio da 1.5M

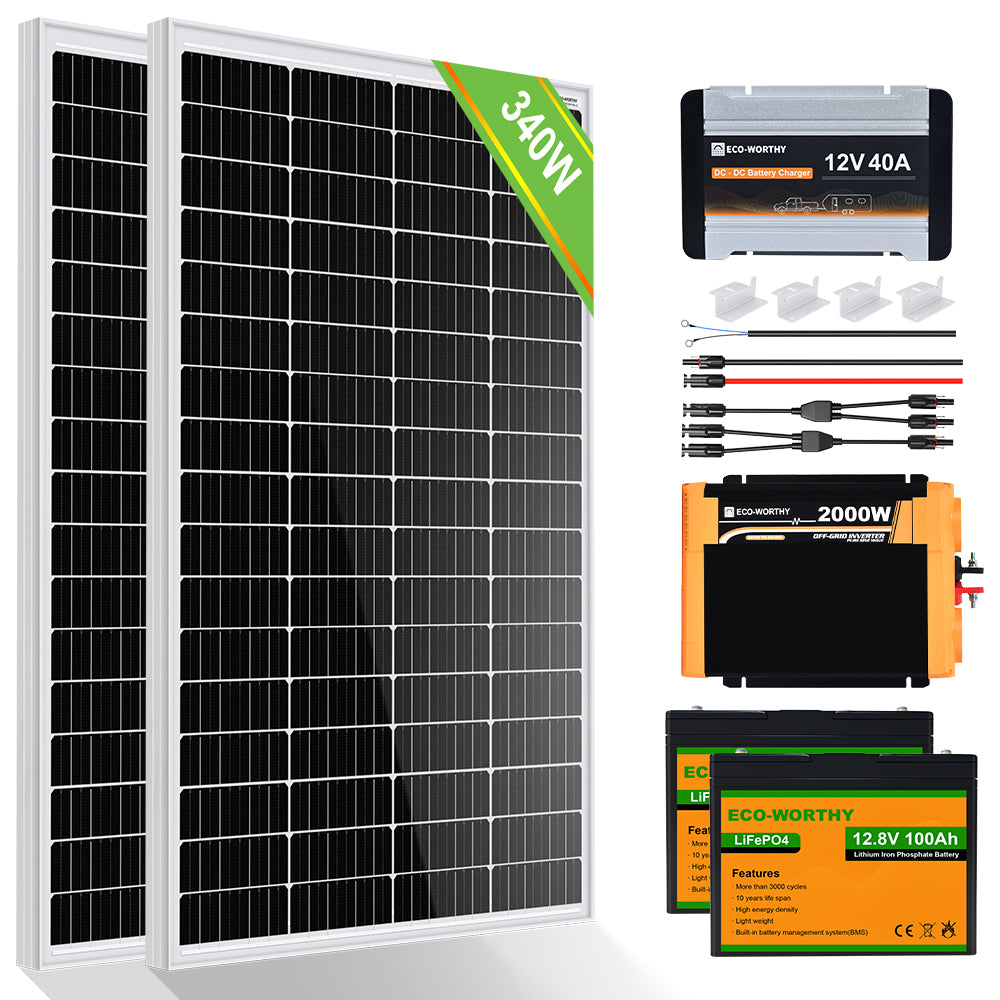

Opzioni inverter e banco batterie-
Inverter e batteria al litio da 2.4kWh (opzionale)
con
1x Inverter a onda sinusoidale pura 2000W 12V-220V
2x Batteria al litio 100Ah 12V LiFePO4

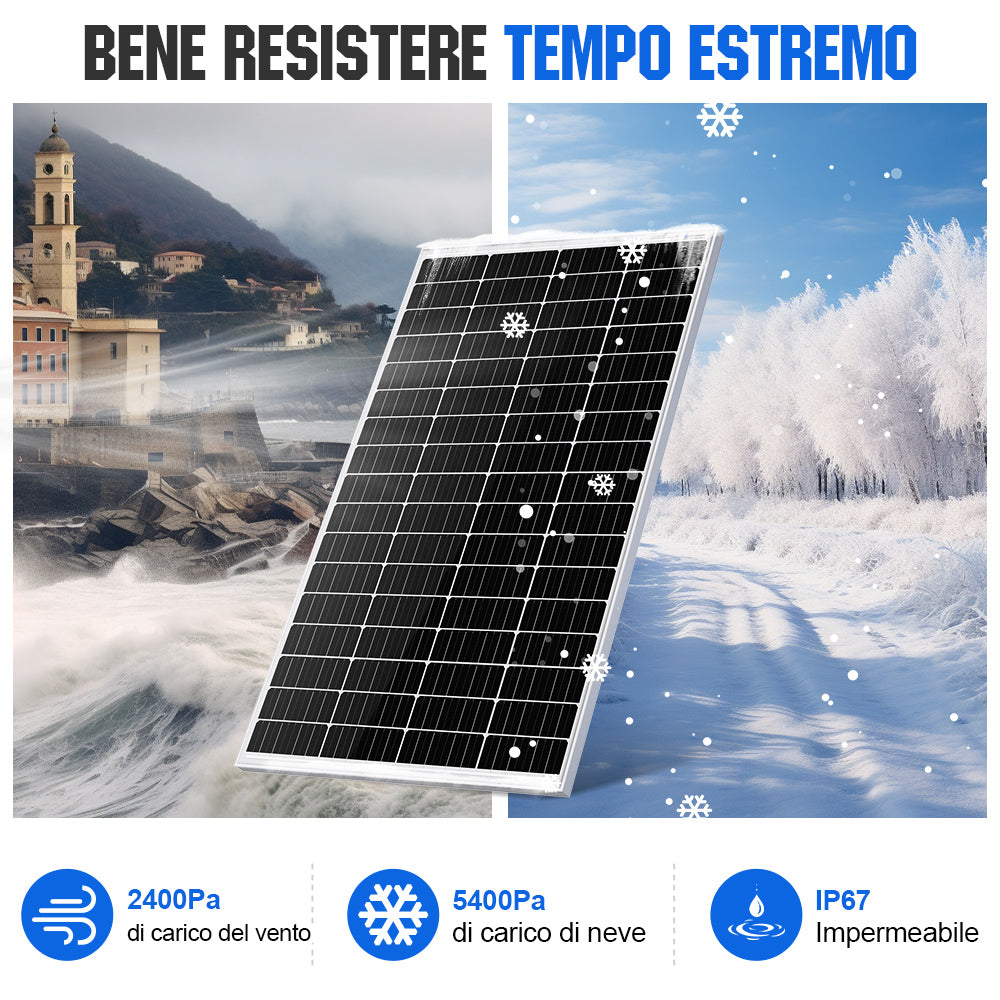

Pannello solare monocristallino da 170W

Potere stimato: 170W	Cella solare: monocristallina
Tensione massima/di picco (Vmp): 19.0V	Tensione a circuito aperto (Voc): 23.0V
Corrente di cortocircuito: 9.39A	Corrente massima: 8.95A
Tolleranza di uscita: ±3%	Coefficiente Isc moderato: (010+/-0.01)%/°C
Coefficiente moderato di Voc: -(0.38+/-0.01)%/°C	Intervallo di temperatura: -40°C ~ +85°C
Telaio: telaio in lega di alluminio	Lunghezza del cavo di prolunga: 90 cm
Dimensioni del cavo di prolunga: 4mm² (11AWG) / MC4	Dimensioni spina: 1355 x 690 x 35 mm
Peso: 8.9 kg

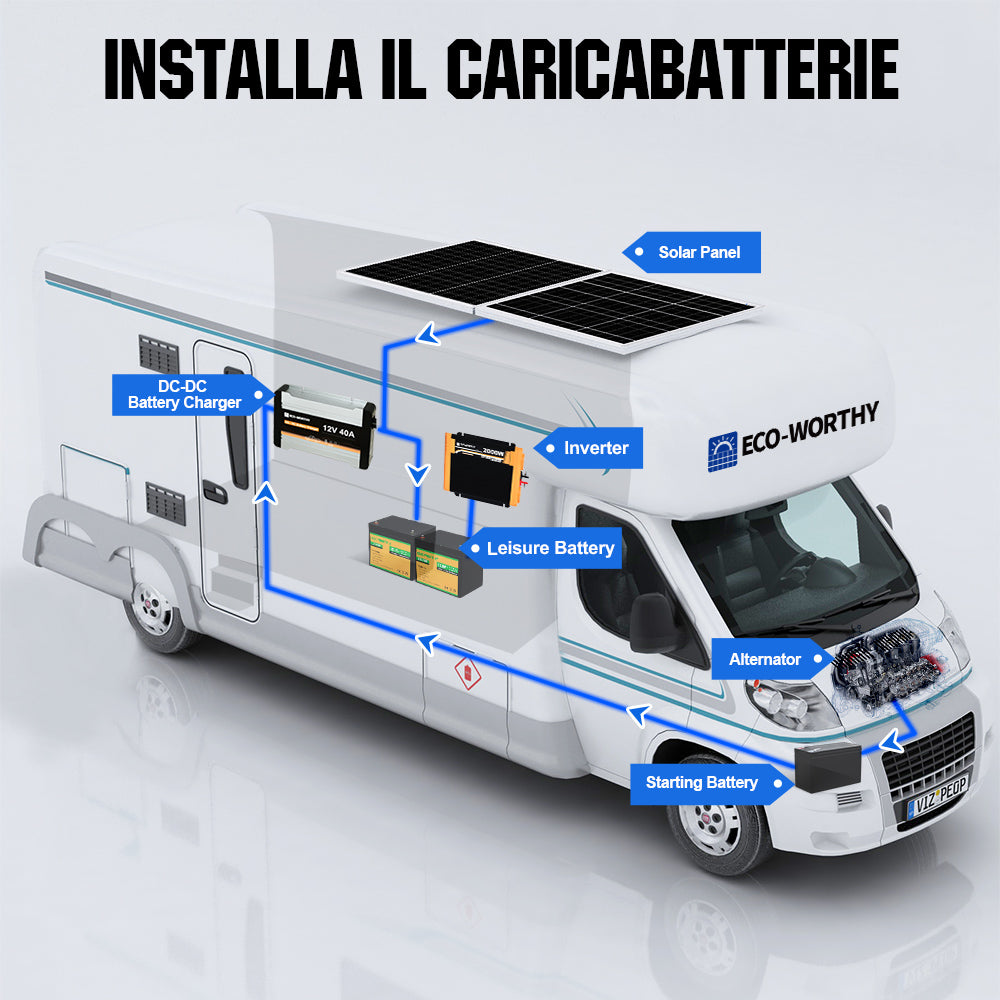

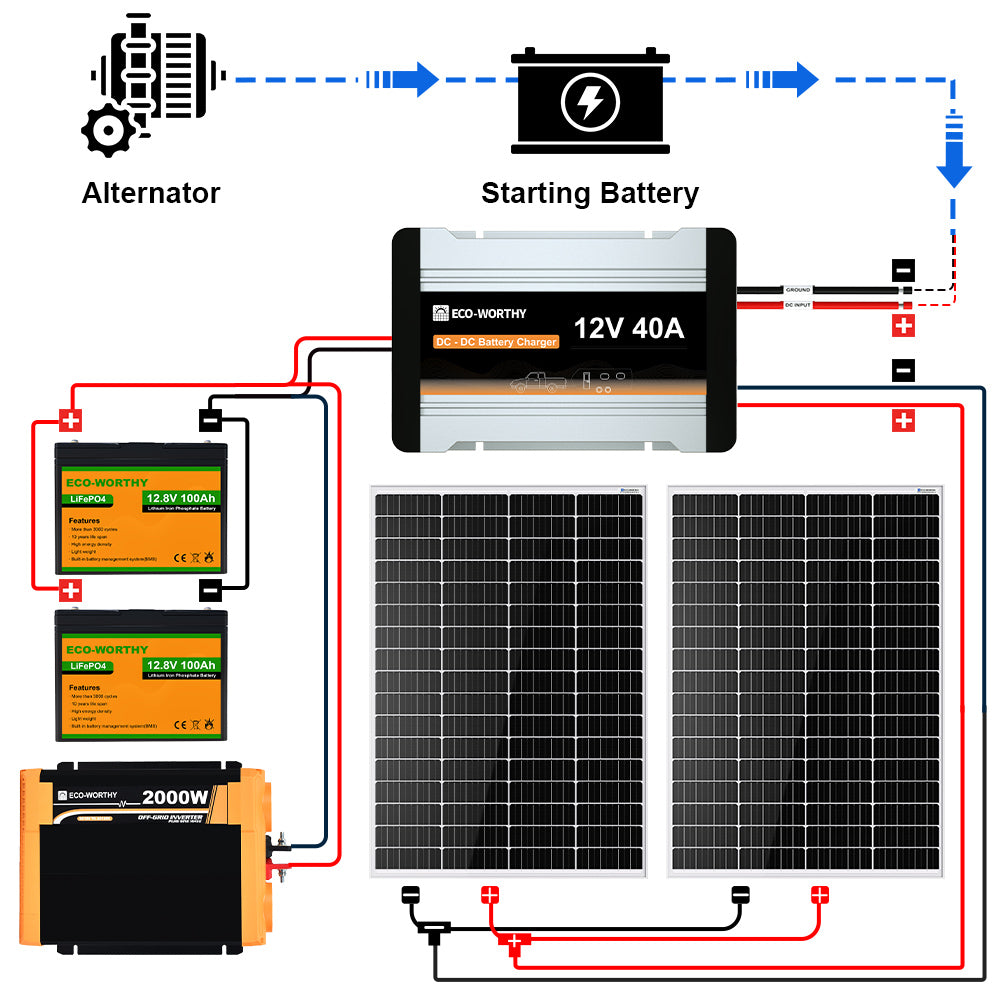

Caricatore della batteria MPPT da 40A DC a DC

Tipo: Multi Stage	Ingresso: batteria DC: 12.4-16.0V; Ingresso solare: 16-25V
Tensione di output / di ricarica: 14.4-15.4V	Corrente di uscita: DC Output: 40A; Output solare: 40A
Tensione di avvio minima: batteria da 2.0 V per caricare	Soft Start: sì
Corrente di carica morbida: 40A

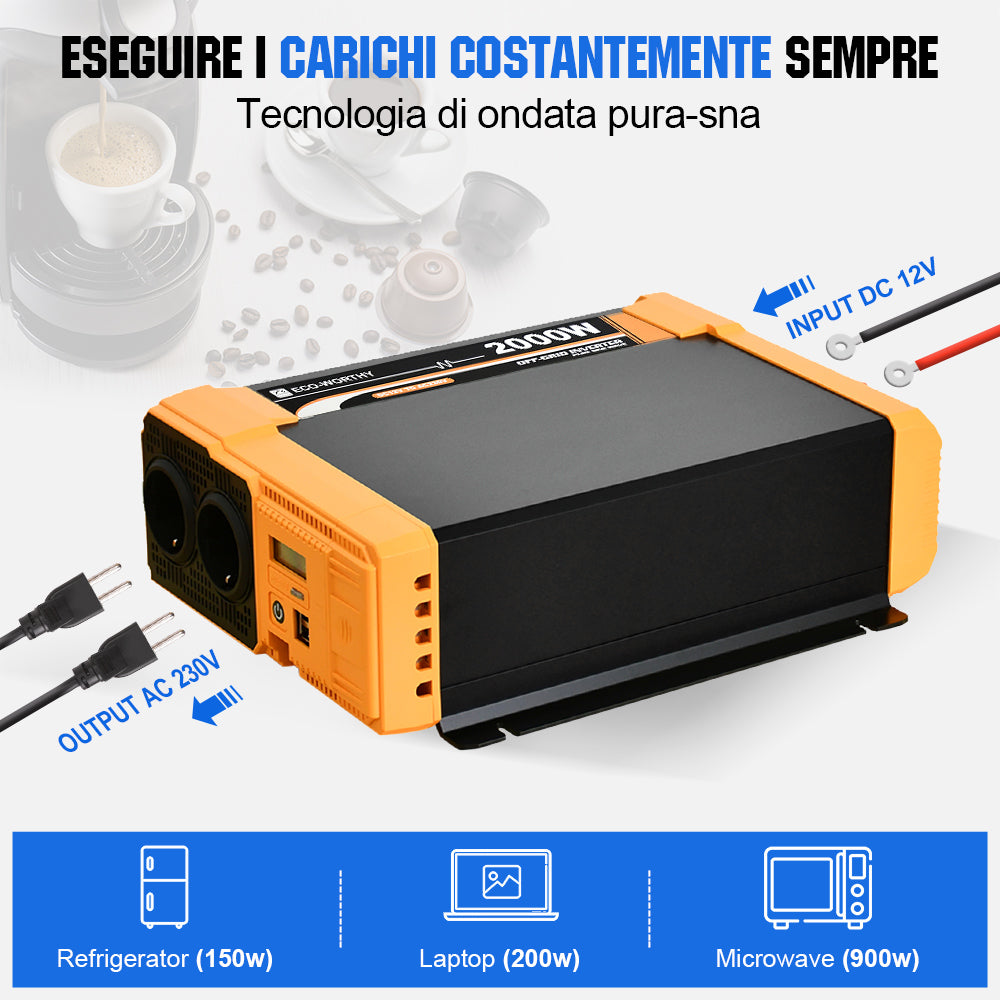

Inverter off-grid da 2000W 12V

Performance di partenza continua (W): 2000W + 18W USB	Capacità di sovratensione (prestazioni migliori): 4000W
Ingresso nominale DC (V, A): Batteria da 12V, 200A	Intervallo di tensione di ingresso: 10,5–16VDC ± 0.3V
Frequenza nominale(Hz): 50Hz±1	Tangente AC (V, A): 230VAC ±10 %, 8.7A
Output nominale USB (V, A): 2*QC3.0	Limiti: <1.2A
Efficienza ottimale: 85% min	Sicurezza (a): 40A*6
Tipo di fusibile: lama interna	Forma dell'albero di partenza: pura ondata del seno
Temperatura di terminazione: 65 ℃ (149 ℉) max	Temperatura operativa: -20 ℃ ~ 40 ℃ (4 ℉ ~ 104 ℉)
Umidità aerea in funzionamento/stoccaggio RH: 5 ~ 95%	Sistema di raffreddamento: ventola termica
Clarfactor: <4.5 %	Dimensioni: 16.8*9.8*4.1 pollici
Peso incomposto: 10.89 libbre

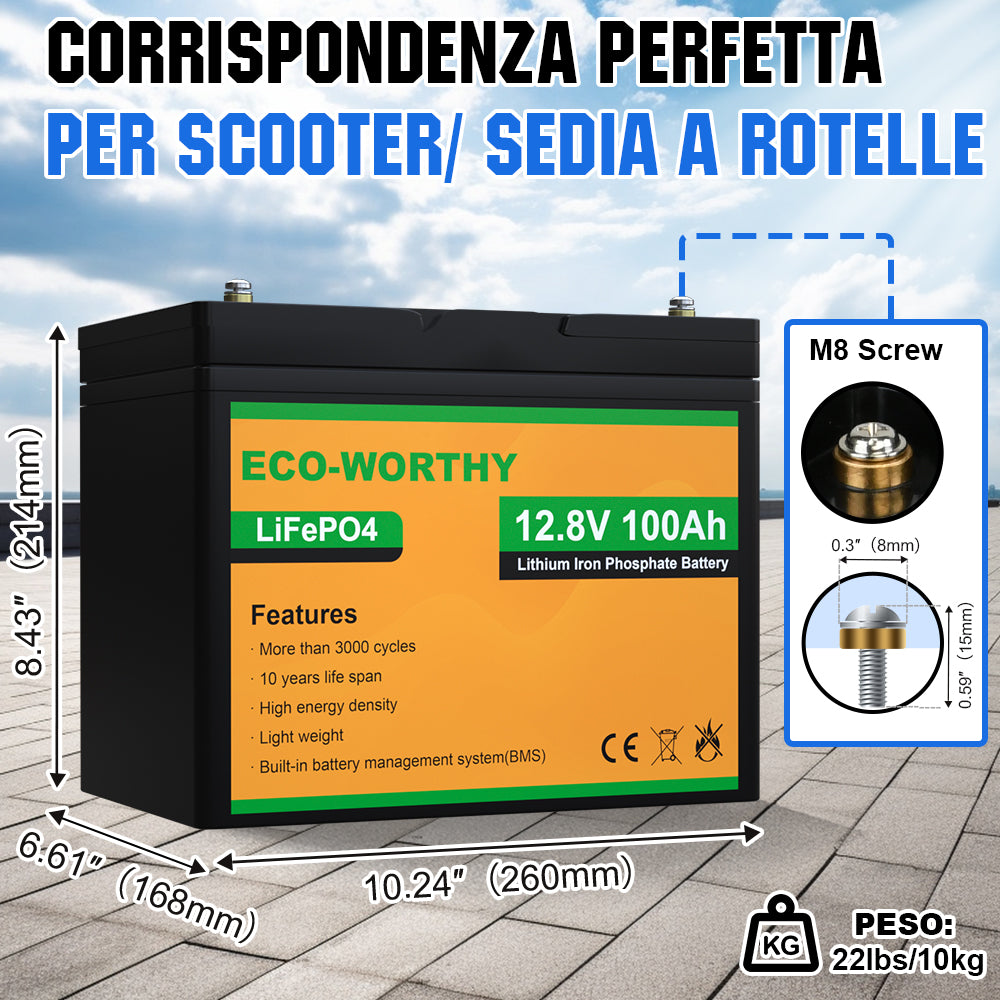

Batteria al litio LiFePO4 da 100Ah

Capacità della batteria: 100Ah	Potenza della batteria: 1280Wh
Tensione della batteria: 12.8V	Corrente massima di carica/scarica: 100A/100A
Intervallo di temperatura di carica: 0-55 ℃	Intervallo di temperatura di scarica: ﹣20－55℃
Tensione di carica massima: 14.5V	Tensione di interruzione della scarica: 10V
Dimensione della vite: M8	Dimensioni della batteria: 260*168*214 mm
Peso della batteria: 10 kg

Cavo solare 5m 4mm² con MC4

Tipo di cavo: collegamento dei pannelli solari ai regolatori di carica	Tensione nominale: 600/1000V
Lunghezza: 5 metri (16 piedi)	Conduttore: filo di rame stagnato
AWG: 12	Area della sezione trasversale normale del conduttore (mm2): 4
Impermeabile: Protezione IP 65	Temperatura: da -40°F a +185°F
Connettore: MC4

Z staffe di montaggio

4 staffe per pannelli solari a forma di Z

8 pezzi di dadi e bulloni in acciaio inossidabile

Connettori MC4 per cavi di derivazione a Y

Compatibile con connettore solare MC4.

Facile installazione per 2 pannelli solari collegati in parallelo.
