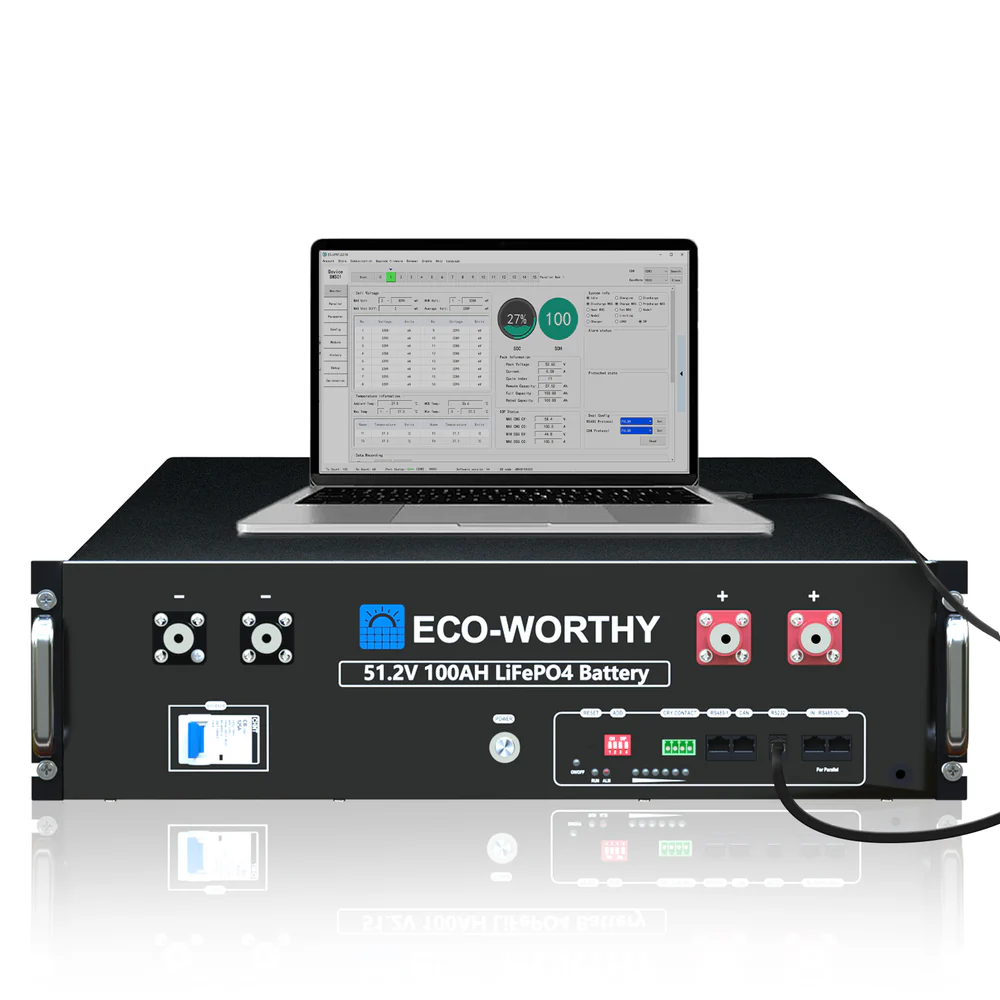

Cavo adattatore da RS232/RS485 a USB per la comunicazione tra batteria del rack del server e PC

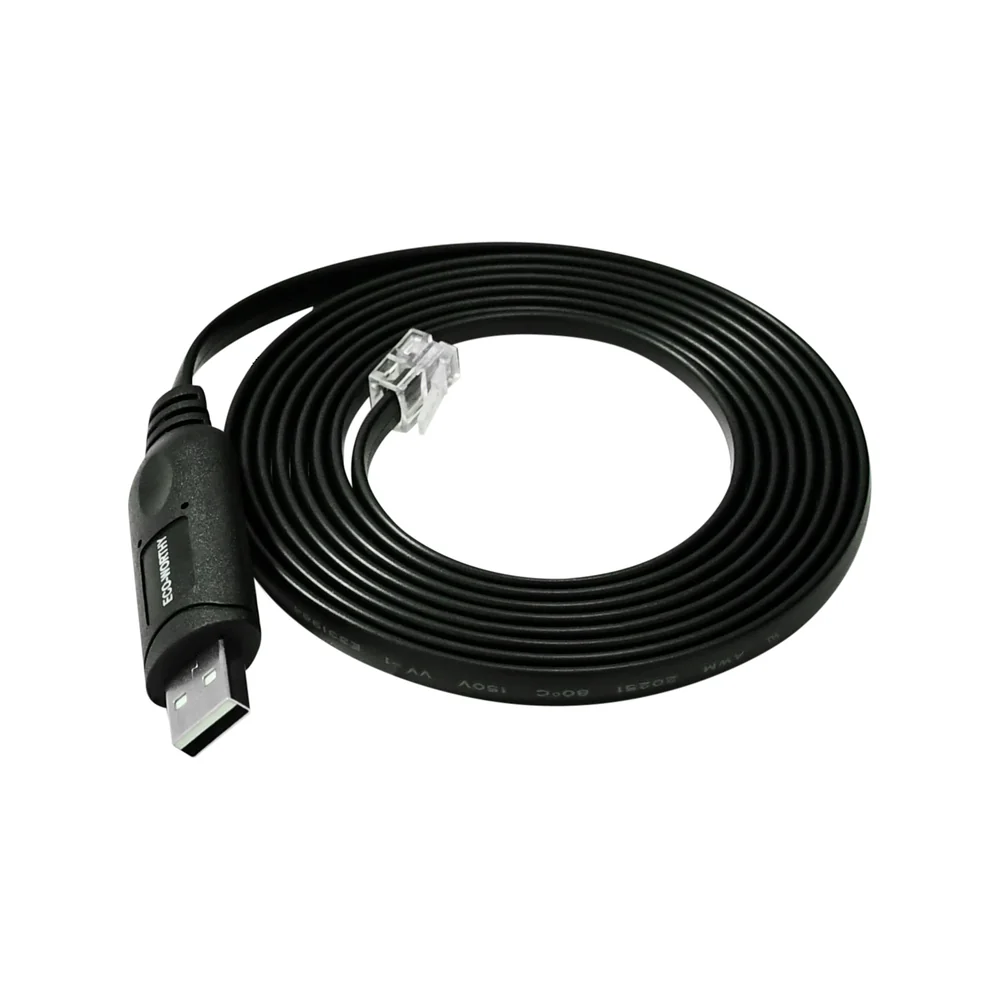

Da RS232 a USB

Puce	FTDI-FT232R
Specifiche del Cavo	UL20251 28AWG (7/0,12BC) 6C, guaina in PVC, colore: nero
Diametro Esterno	2,5 mm × 7,0 mm ± 0,2 mm
Lunghezza	2000 mm ± 10 mm
Connettore USB	FTDI-FT232R PCB + SP213, USB-A maschio Colore Plastica: Bianco
Connettore RS232	RJ12 6P6C Maschio



RS232		USB
Spillo	Descrizione	Spillo	Descrizione
1, 2, 6	NC	1	VCC
4	TXD	2	D+
3	RXD	3	D-
5	GND	4	GND

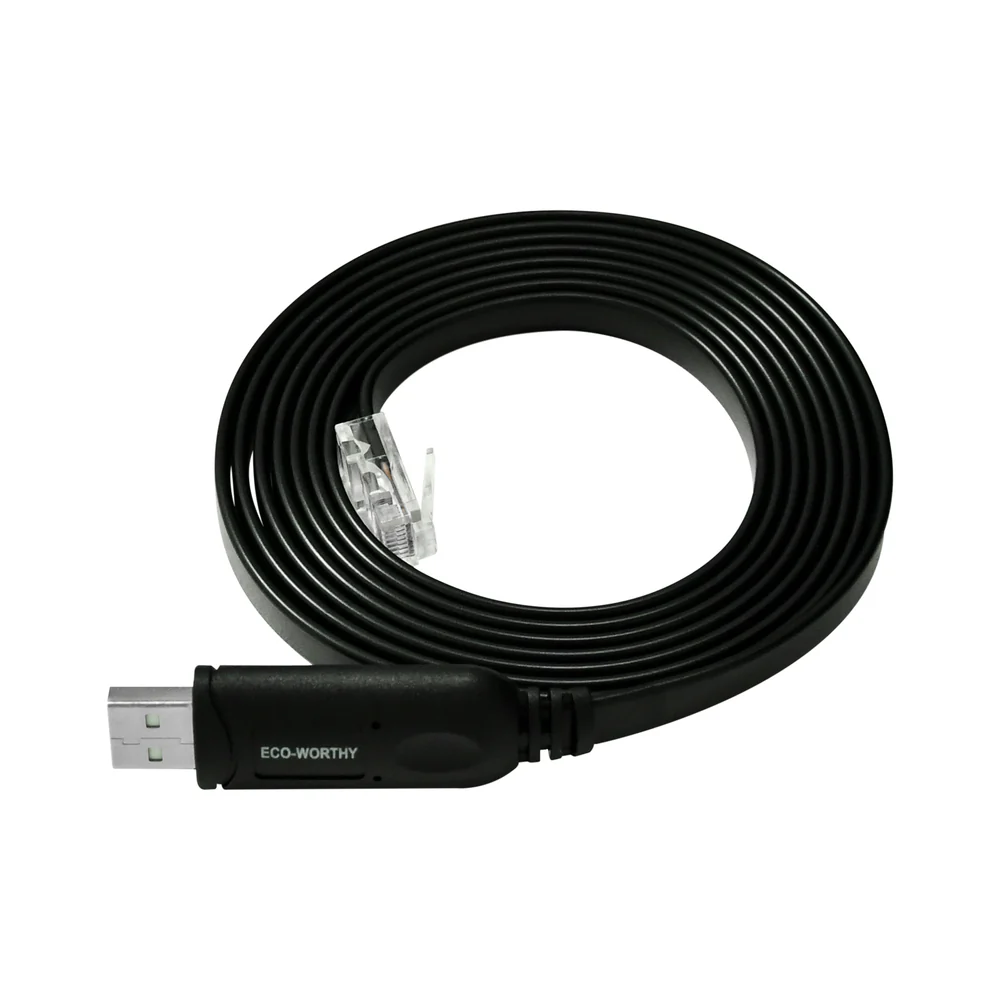

Da RS485 a USB

Puce	FTDI-FT485R
Specifiche del Cavo	UL20251 28AWG (7/0,12BC) 6C, guaina in PVC, colore: nero
Diametro Esterno	2,5 mm × 7,0 mm ± 0,2 mm
Lunghezza	2000 mm ± 10 mm
Connettore USB	FTDI-FT232R PCB + SP213, USB-A maschio Colore Plastica: Bianco
Connettore RS232	RJ12 6P6C Maschio

RS485		USB
Spillo	Descrizione	Spillo	Descrizione
2, 7	A+	1	VCC
1, 8	B-	2	D+
4, 5	NC	3	D-
3, 6	GND	4	GND

Informazioni sui test di sicurezza

1. Test elettrico: circuito aperto al 100%, cortocircuito e guasto del cablaggio.

2. Resistenza del conduttore: 20 μm, resistenza di isolamento: 10 MOhm.

3. Alta tensione: 300 V CC, 0,01 s.

4. Conformità RoHS
