ECO-WORTHY Sistema di inseguimento solare a doppio asse (versione avanzata, +40% di efficienza) con controller di inseguimento

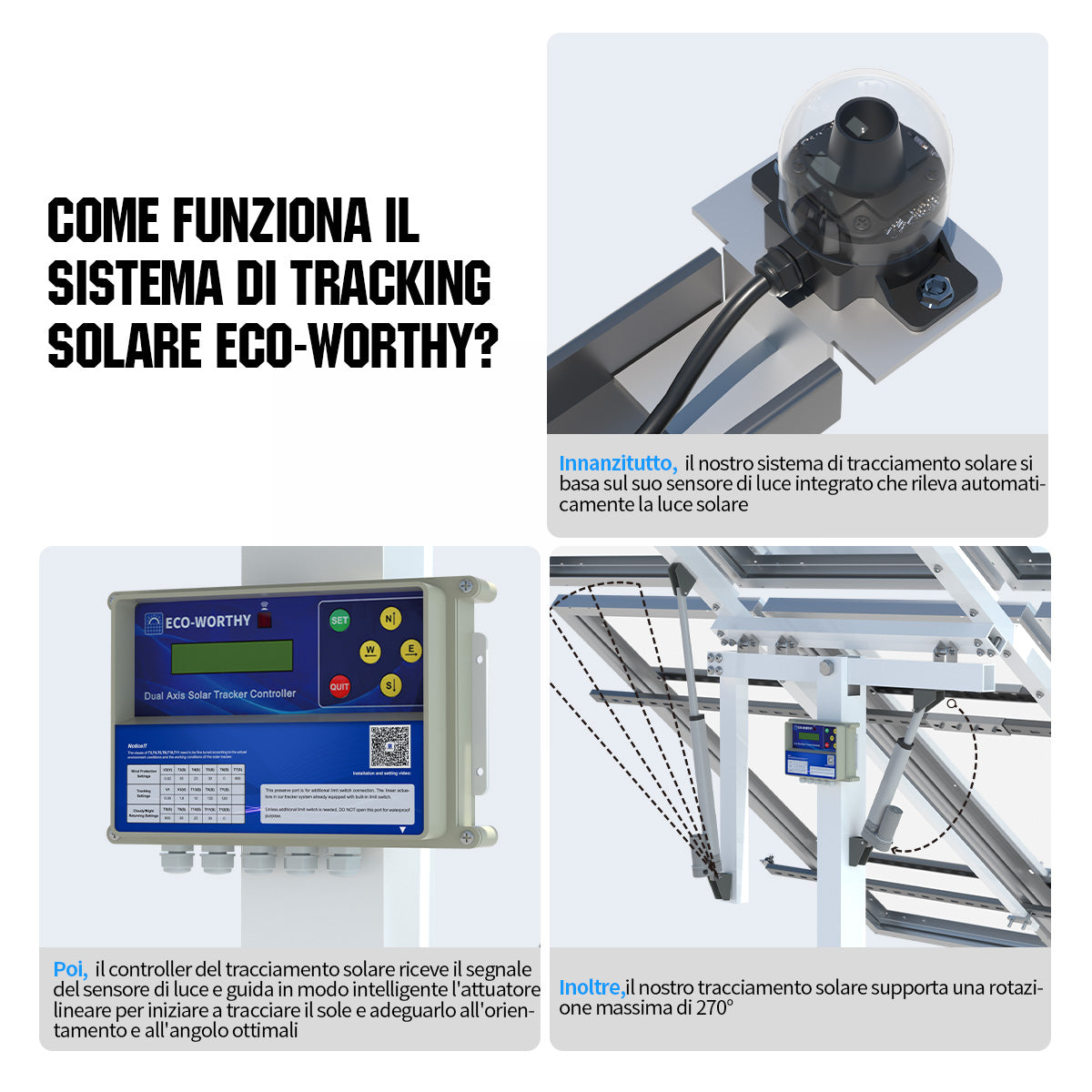

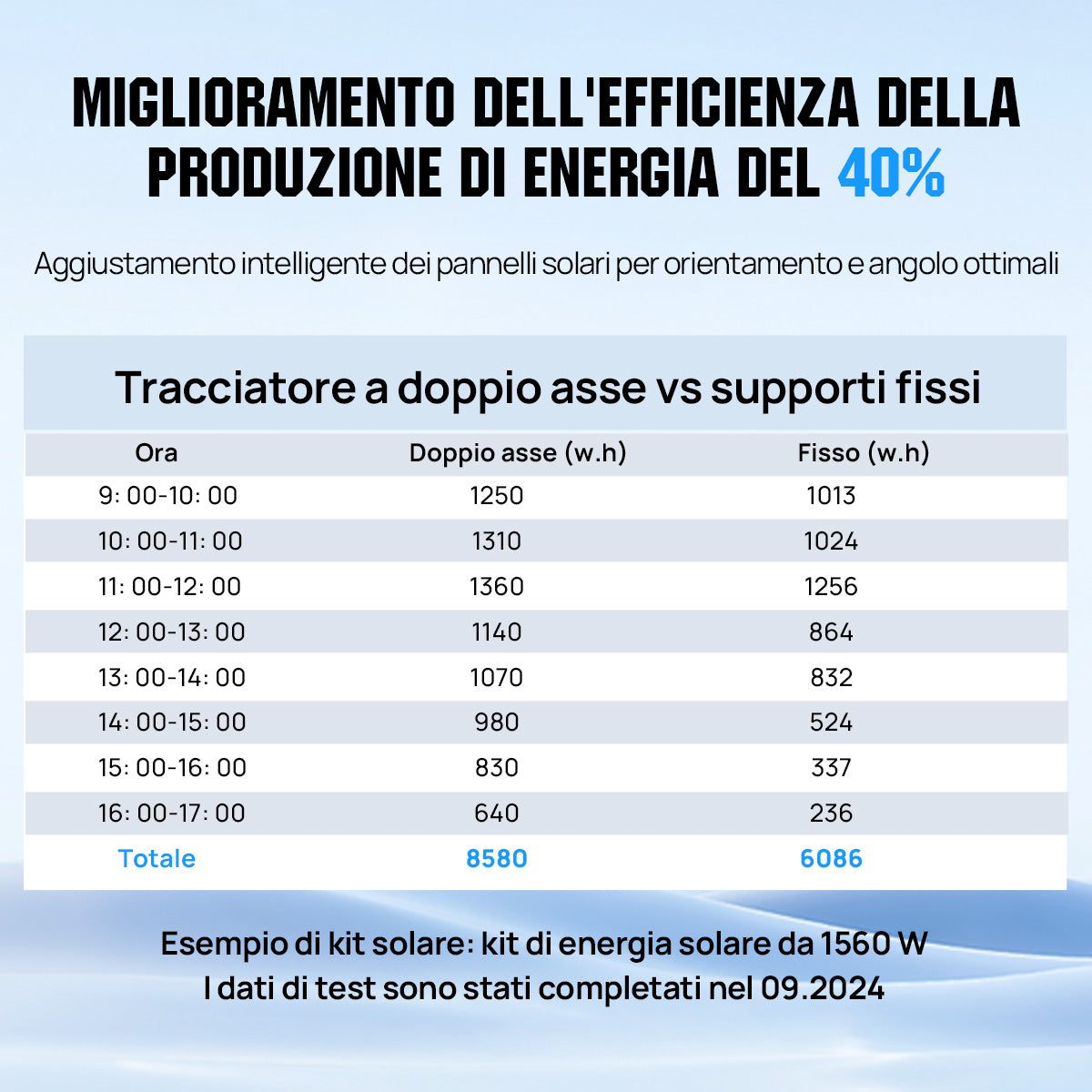

Il sistema di inseguimento solare a doppio asse ECO-WORTHY può controllare l'attuatore lineare a doppio asse per fare in modo che il pannello solare segua la luce solare, mantenere il pannello solare sempre rivolto verso la luce solare. Il controller dell'inseguitore solare a doppio asse è un componente di base per il sistema di inseguimento solare a doppio asse. Può funzionare con un attuatore lineare 12V e rendere l'inseguitore solare in grado di migliorare sostanzialmente la quantità di energia prodotta da un sistema migliorando le prestazioni mattutine e pomeridiane. Il nostro inseguitore solare a doppio asse con rilevatore meteorologico intelligente, smette di funzionare nei giorni nuvolosi. Appiattisci il pannello solare durante la notte o il giorno di pioggia. Piatto il pannello solare nella tempesta. È un sistema che posiziona i pannelli solari in alto su un palo e li segue verso il sole tutto il giorno. La produzione da un inseguitore solare a doppio asse aumenterà la produzione annuale di circa il 40% rispetto a un sistema solare fisso.

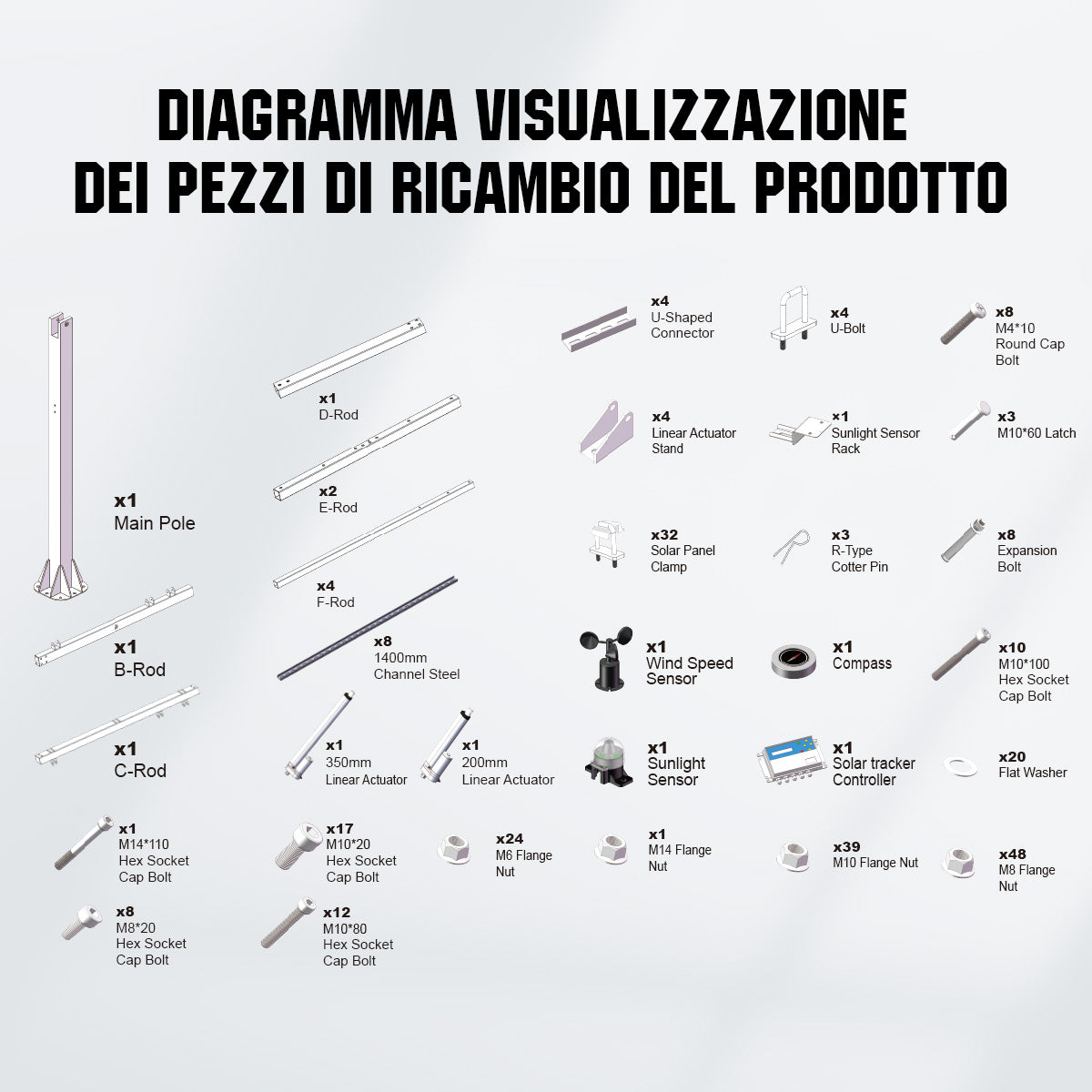

Il pacchetto include:

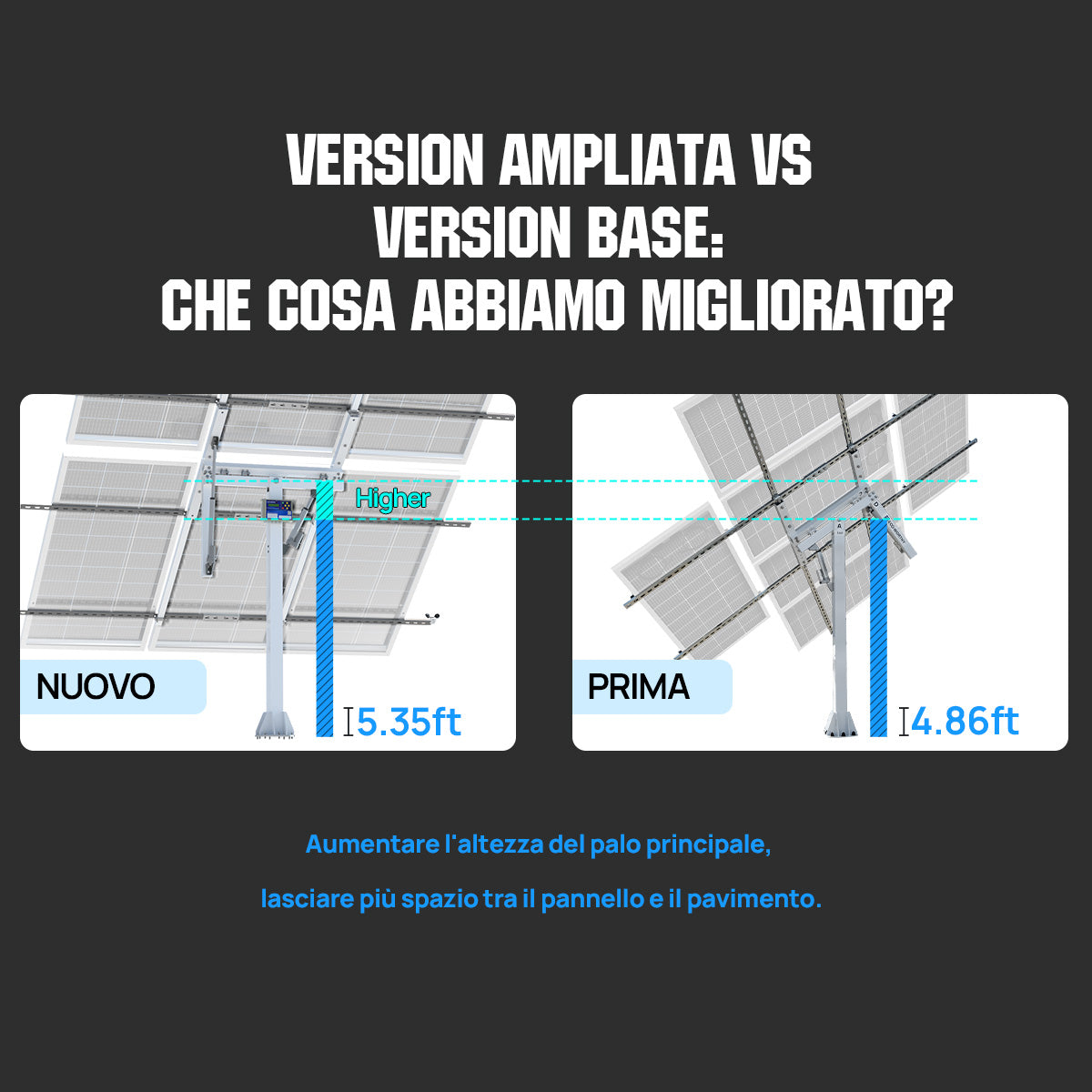

Sistema di tracciamento ampliato e migliorato

Idoneità dei moduli solari	100W	200W	400W
Folla	10PCS	8PCS	4PCS
Larghezza	≤550mm	≤690mm	≤1300mm
Dimensioni del prodotto:	(L × l × H) : 279,4 × 279,4 × 162,6 cm	Velocità massima del vento:	17.2m/s
Peso dell'articolo:	64 kg	Carico massimo:	200kg

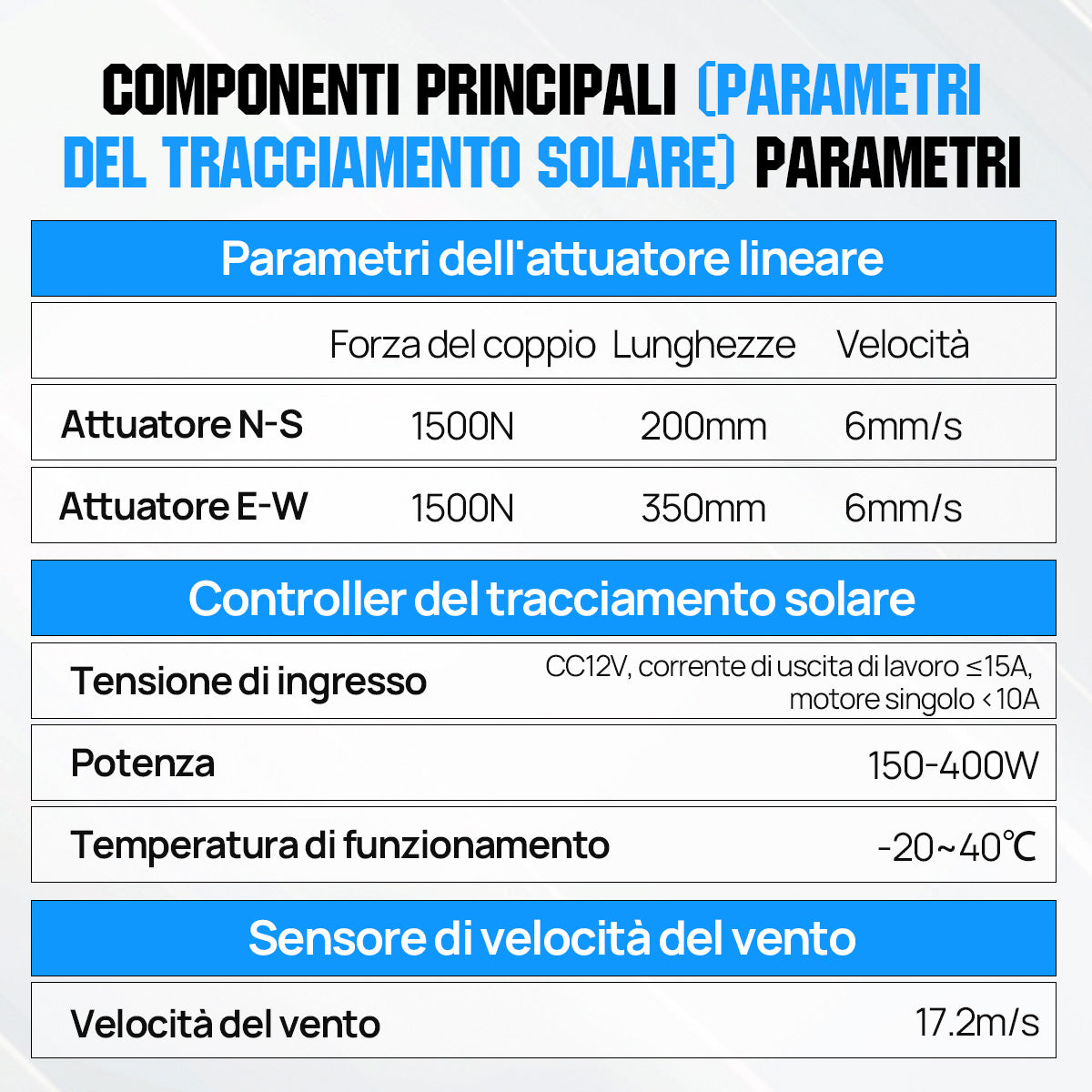

6" 150mm Attuatore lineare

Tensione di ingresso: 12V DC	Max. Carico: 1500N/330lbs/150kg
Lunghezza della corsa: 6 inches (150mm)	Ciclo di lavoro: 25%
Classe di protezione: IP65	Materiale: Lega di alluminio
Rumore basso: db<45 (A)



12" 300mm Attuatore lineare

Tensione di ingresso: 12V DC	Max. Carico: 1500N/330lbs/150kg
Lunghezza della corsa: 12 inches (300mm)	Ciclo di lavoro: 25%
Classe di protezione: IP65	Materiale: Lega di alluminio
Rumore basso: db<45 (A)
