Eco-Worthy Kit Solare Off-Grid da 400W 12V per Camper con MPPT da 40A

Una soluzione solare completa, efficiente e facile da installare per la tua indipendenza energetica. Il kit solare flessibile ECO-WORTHY da 400W combina pannelli ad alta efficienza con tecnologia N 18BB e rivestimento ETFE e un regolatore MPPT 40A intelligente, garantendo una produzione energetica stabile e ottimizzata anche in condizioni di luce non ideali. Progettato per applicazioni off-grid, camper, barche e sistemi di backup domestico, questo kit offre installazione semplice, alta affidabilità e controllo intelligente dell’energia, permettendoti di sfruttare al massimo ogni raggio di sole. Energia pulita ovunque tu sia, senza complicazioni.

Specifiche Tecniche

Dimensioni del prodotto:
Pannello solare 200W*2:
Controller MPPT 40A:

Modello: Kit off-grid Eco-Worthy 400W
Specifiche: Kit 400W
Tipo di materiale: ETFE, silicio, alluminio, acciaio inox
Consumo in standby: 25%
Potenza massima: 400 watt

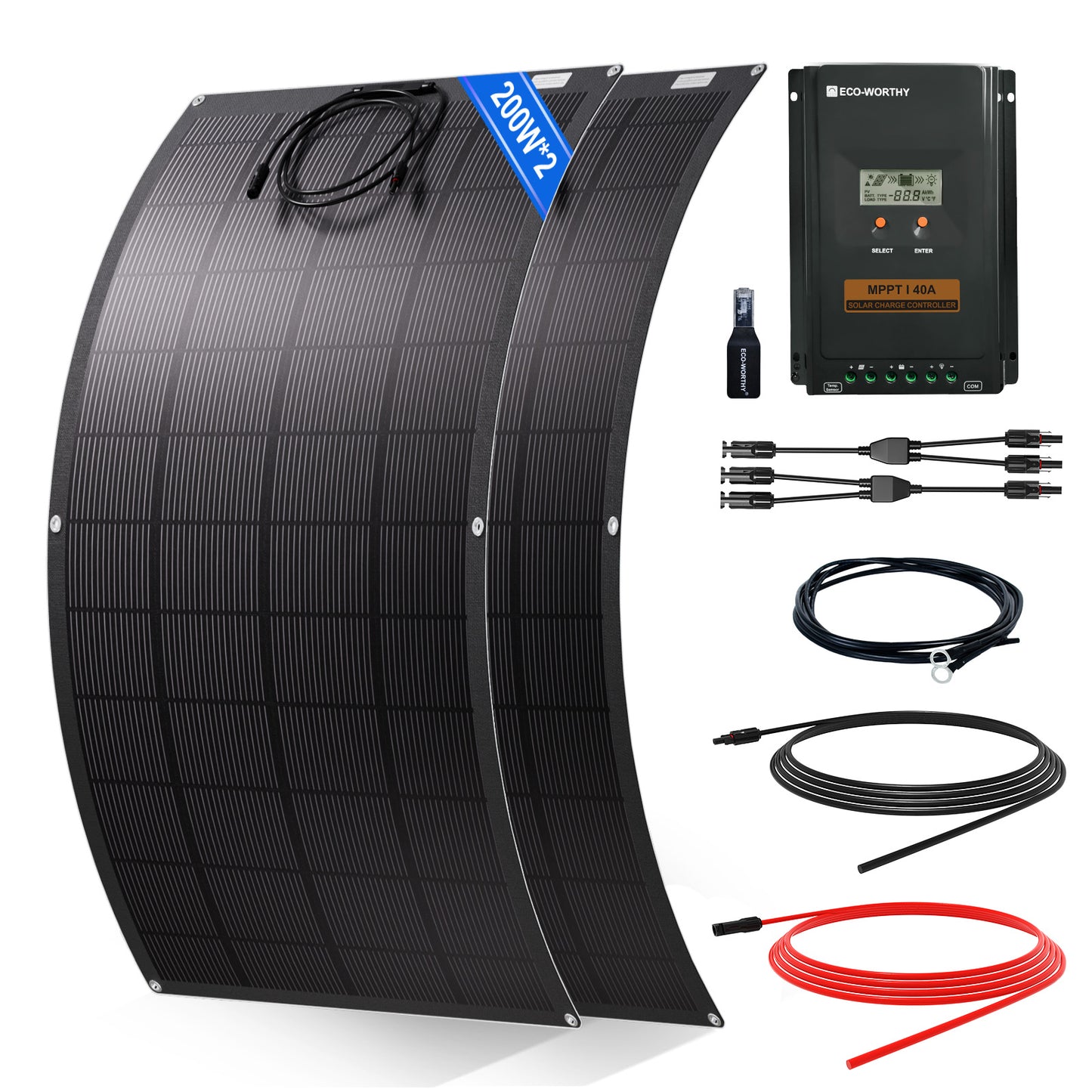

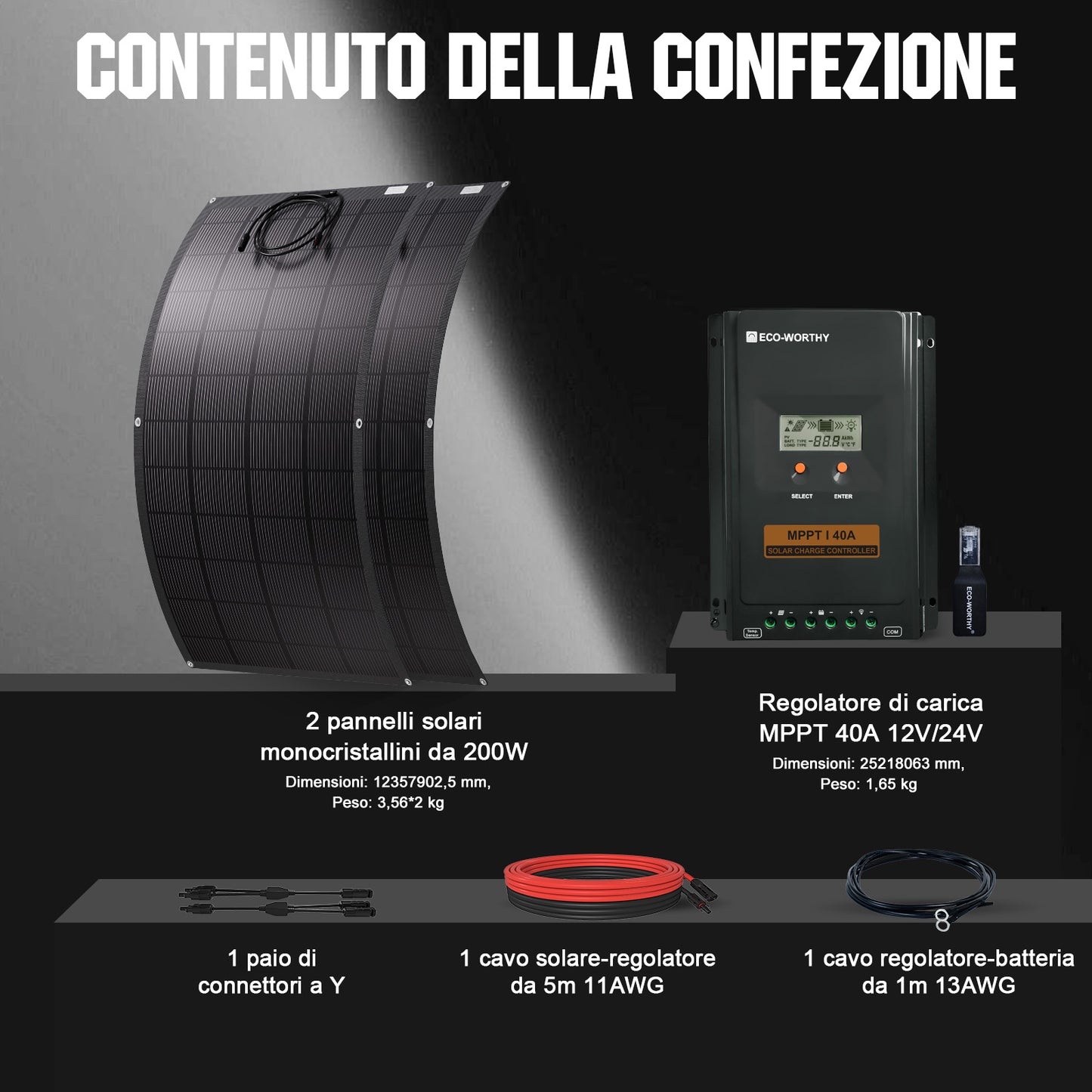

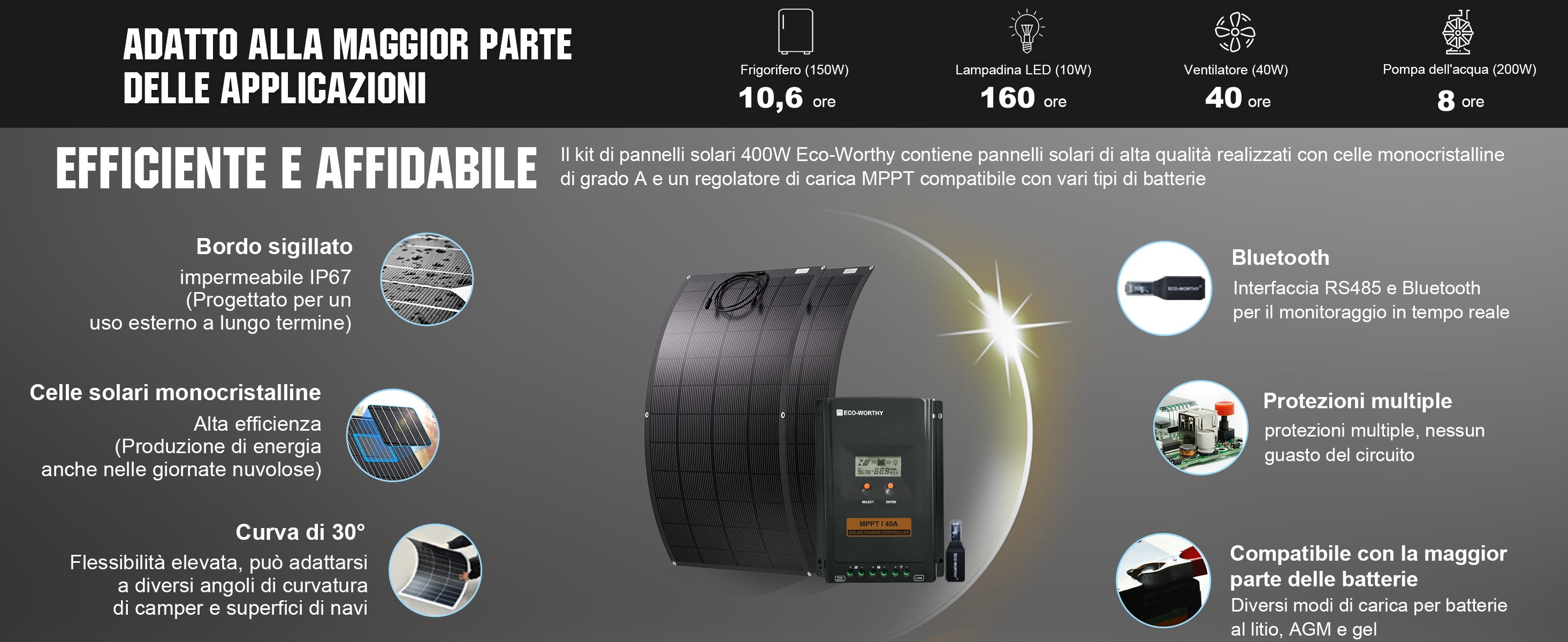

Componenti inclusi:

Set di 2 pannelli solari da 200W

Controller MPPT da 40A con display LCD

Regolatore di carica solare MPPT

Cavo solare

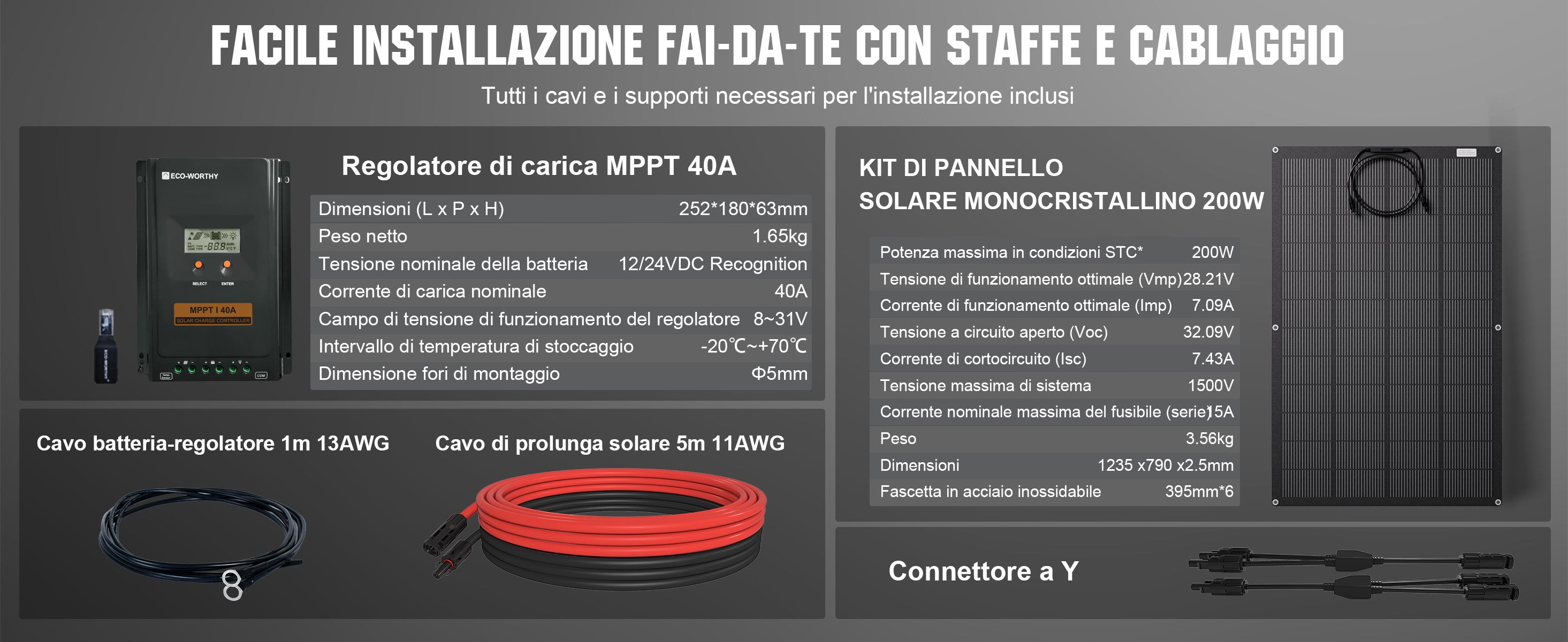

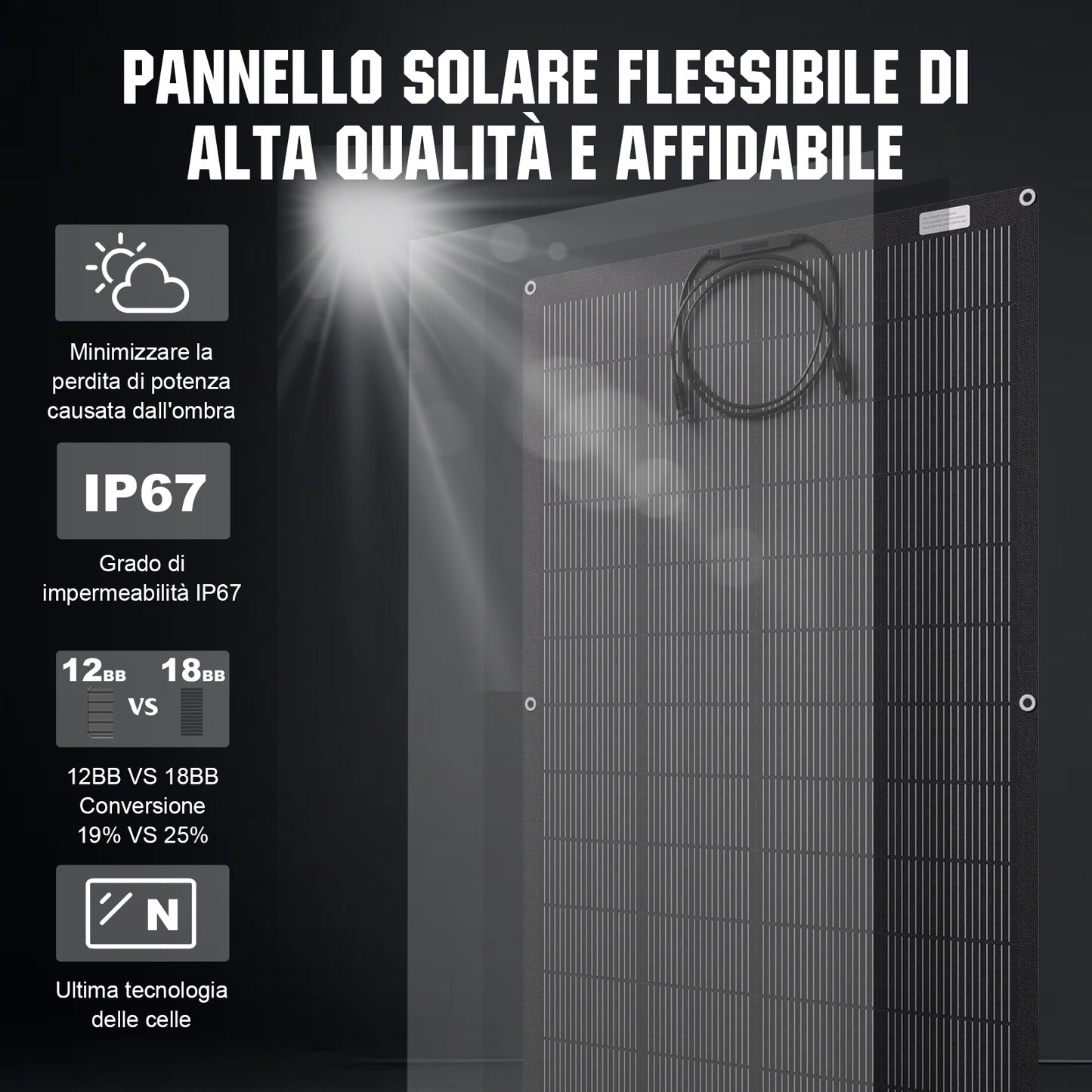

Pannello Solare Monocristallino Flessibile 200W 24V – Dettagli del prodotto

• Potenza massima (STC*): 200 W
• Tensione operativa ottimale (Vmp): 28,21 V
• Corrente operativa ottimale (Imp): 7,09 A
• Tensione a circuito aperto (Voc): 32,09 V
• Corrente di corto circuito (Isc): 7,43 A
• Tensione massima del sistema: 1500 V
• Protezione fusibile in serie max: 15 A
• Peso: 3,56 kg
• Dimensioni: 1235 × 790 × 2,5 mm
• Cerniere/chiusure in acciaio inox: 395 mm × 6

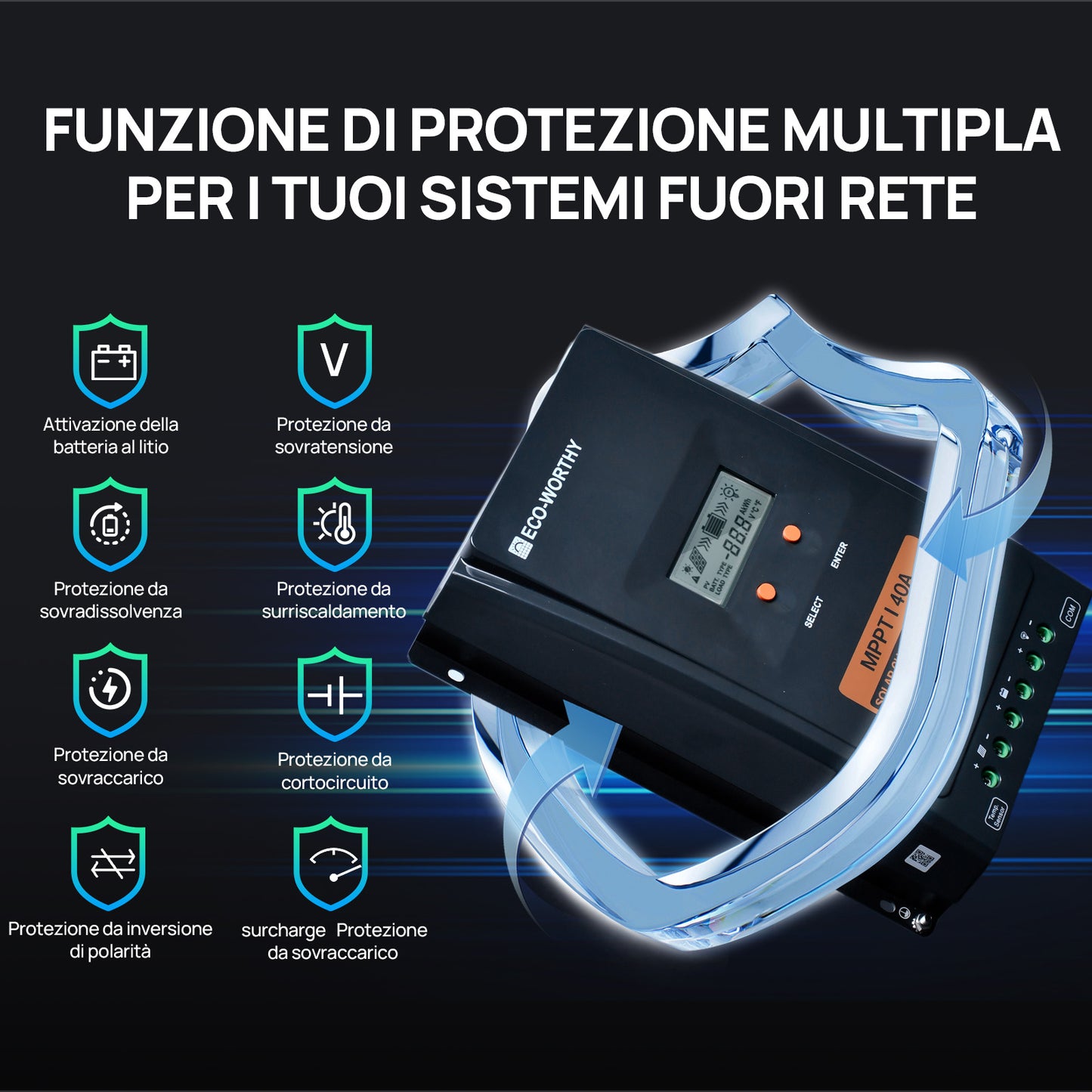

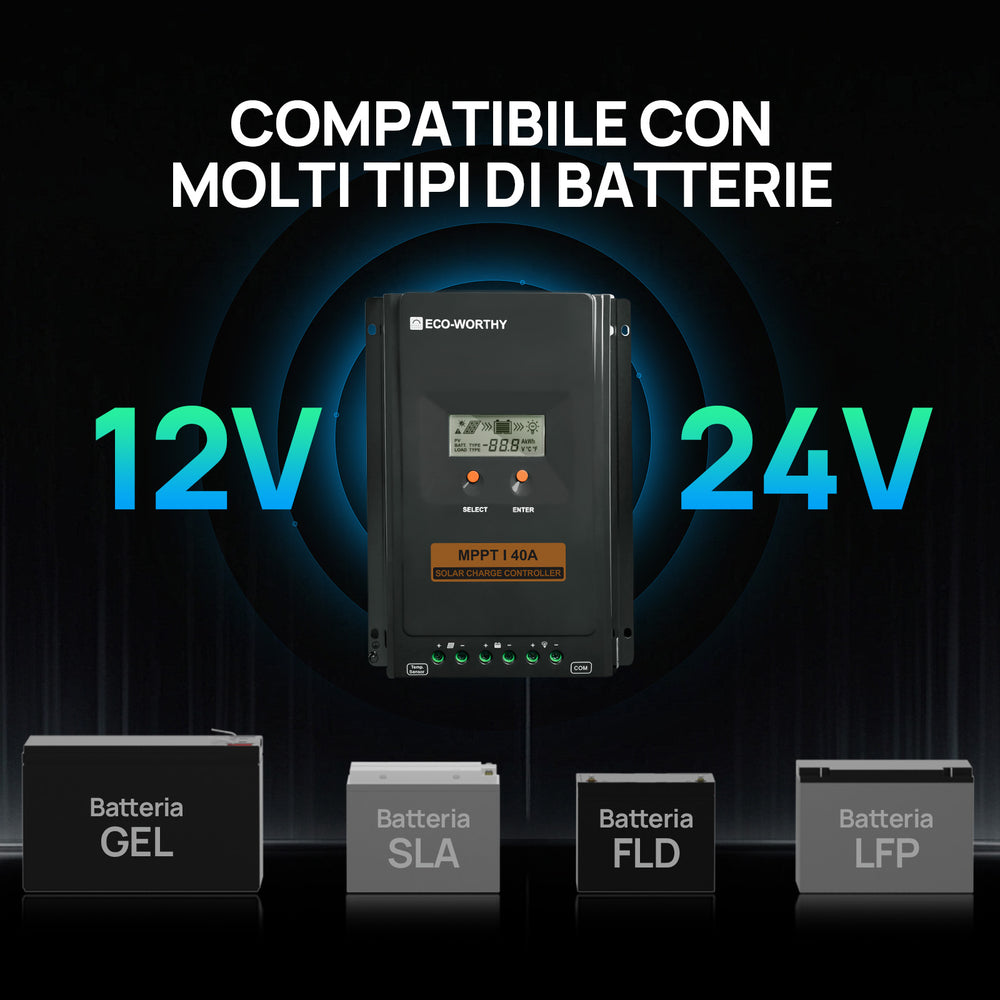

Regolatore di Carica Solare MPPT 40A con Display OLED 12V/24V Autoswitch

Tensione batteria: 12V/24V	Potenza massima ingresso solare: 560/1120W
Modalità di carica: MPPT	Corrente di carica nominale: 20A
Efficienza di carica (picco): 97%	Autoconsumo: 1~2W

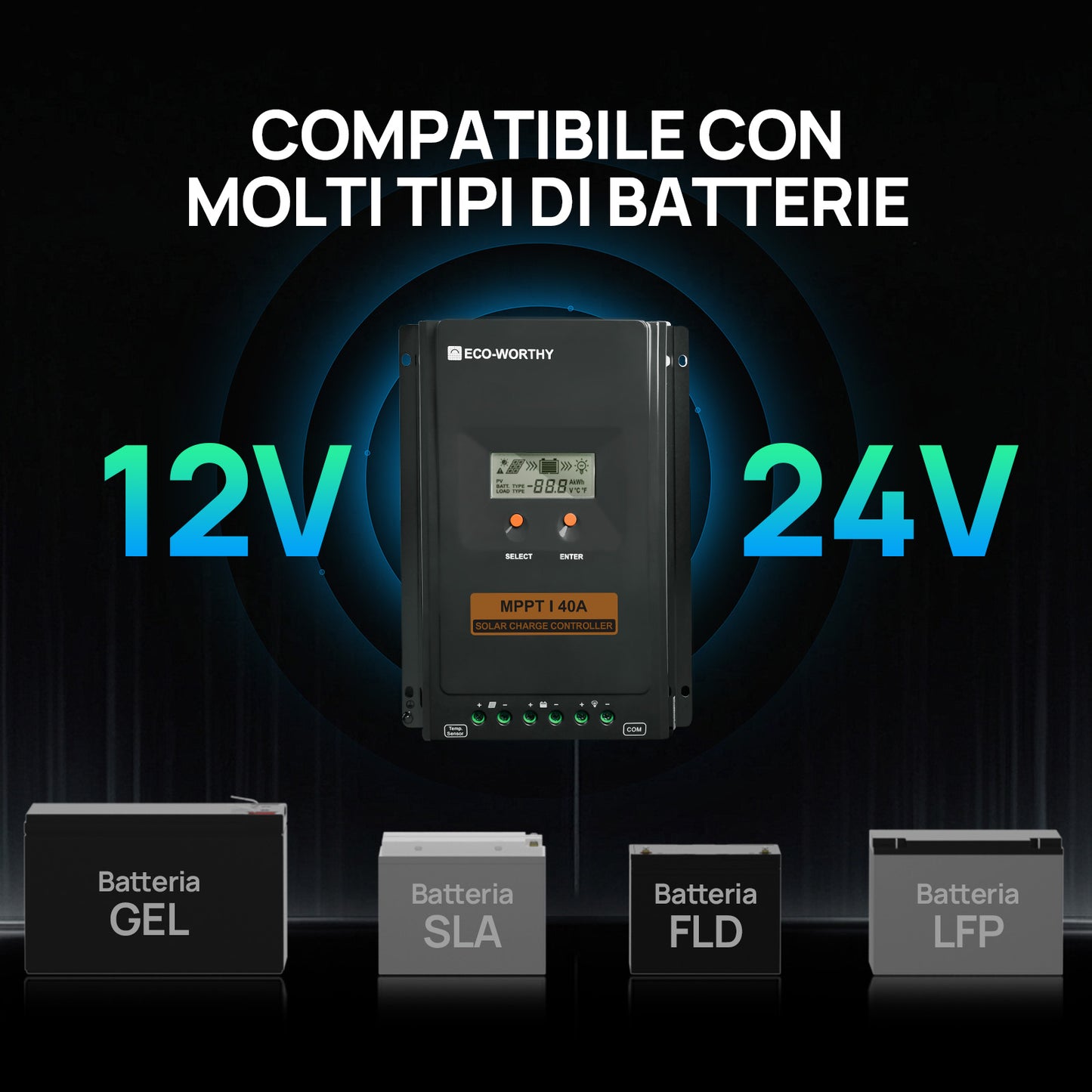

Tipo di batteria: LiFePO4, AGM, sigillata, gel, acido libero	Dimensioni: 220 × 148 × 64 mm
Corrente di carica massima: 40A	Peso: 1,5 kg
Tensione a circuito aperto max PV: < 100V

Cavi di prolunga da 5 m (4 mm²)

Tipo di cavo: Connessione pannello solare → regolatore di carica	Tensione nominale: 600/1000 V
Lunghezza: 5 metri (16 piedi)	Conduttore: Rame stagnato
AWG: 12	Sezione nominale: 4 mm²
Impermeabile: Protezione IP65	Temperatura: -40 °F a +185 °F
Connettore: MC4

Connettori MC4 per cavi sdoppiatori a Y

Compatibili con connettori solari MC4

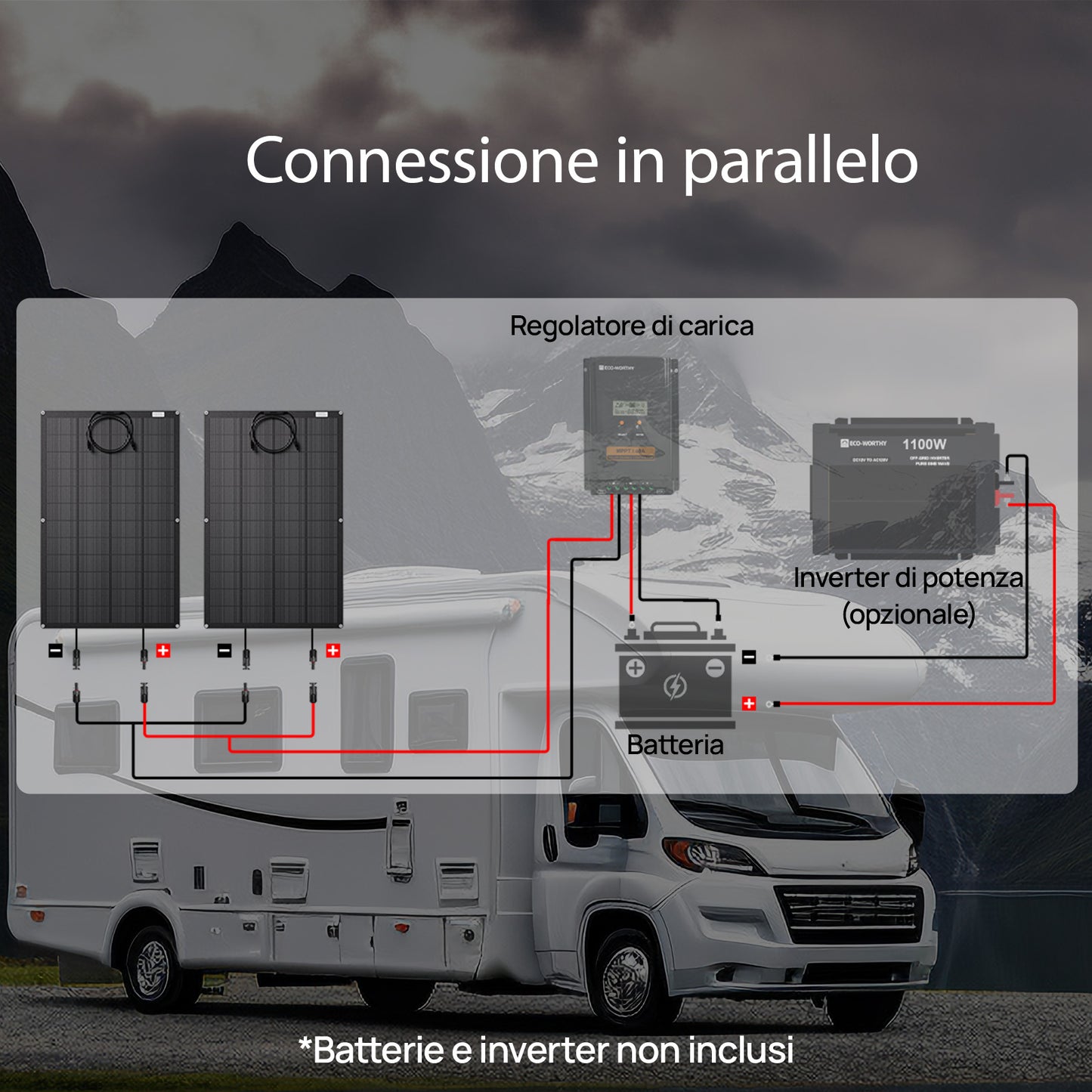

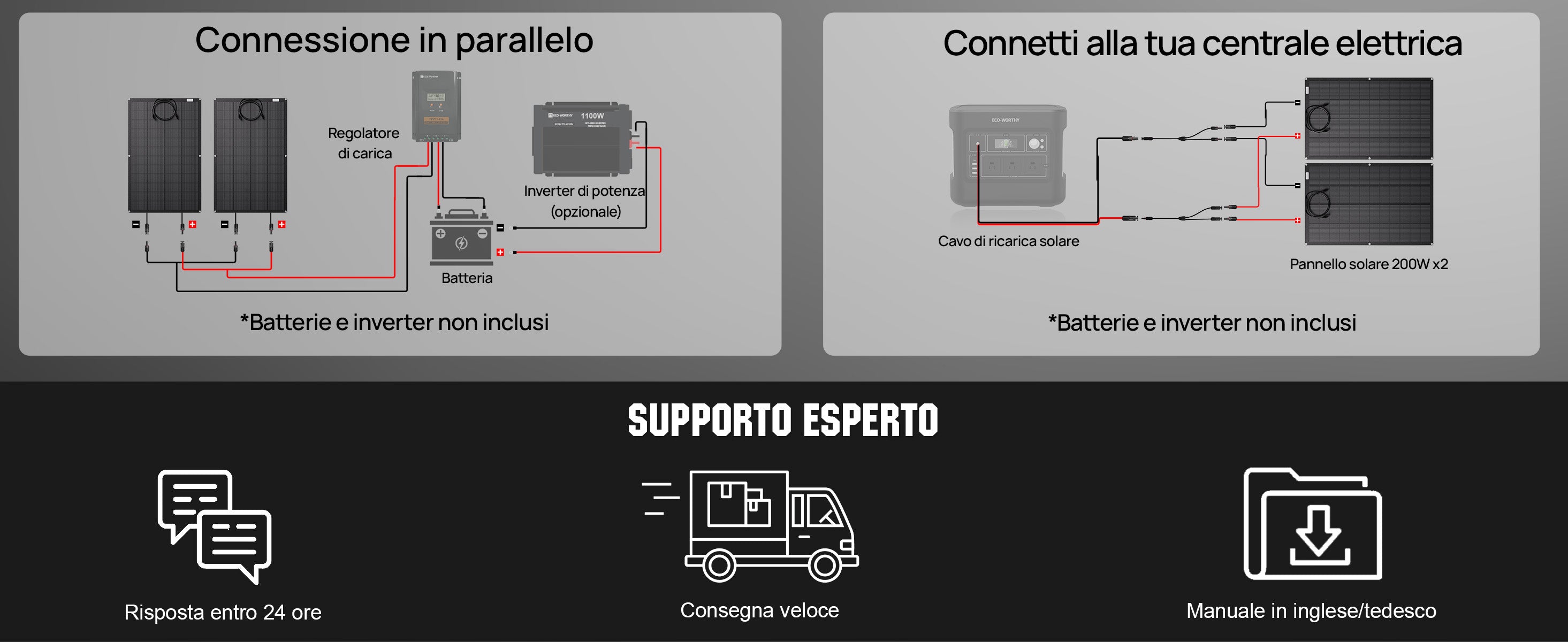

Installazione semplice per collegare due pannelli solari in parallelo
