SKU: L03APDMPPT40A-1

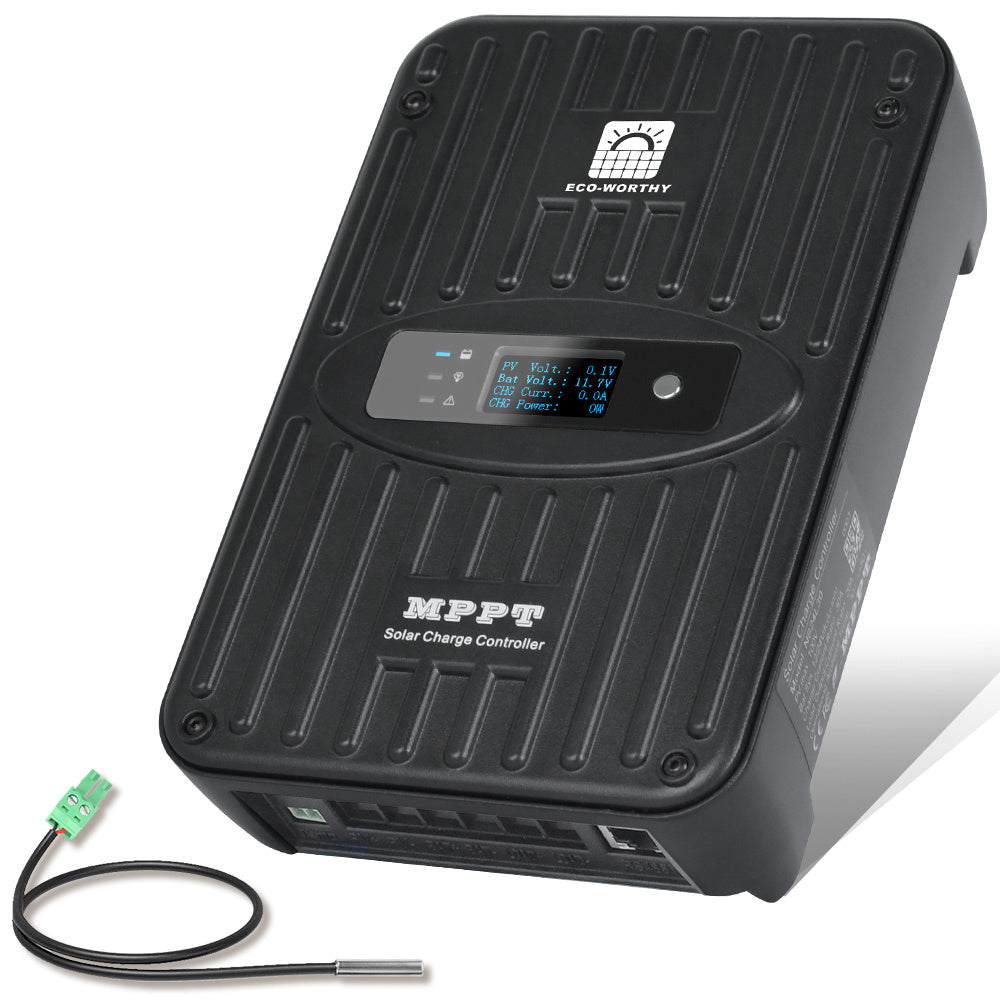

·Rilevamento automatico della tensione di sistema a 12V/24V: il regolatore di carica MPPT da 40A supporta sistemi a 12V e 24V e può rilevare automaticamente la tensione di sistema una volta collegato a batterie sigillate, al gel, AGM e al litio.

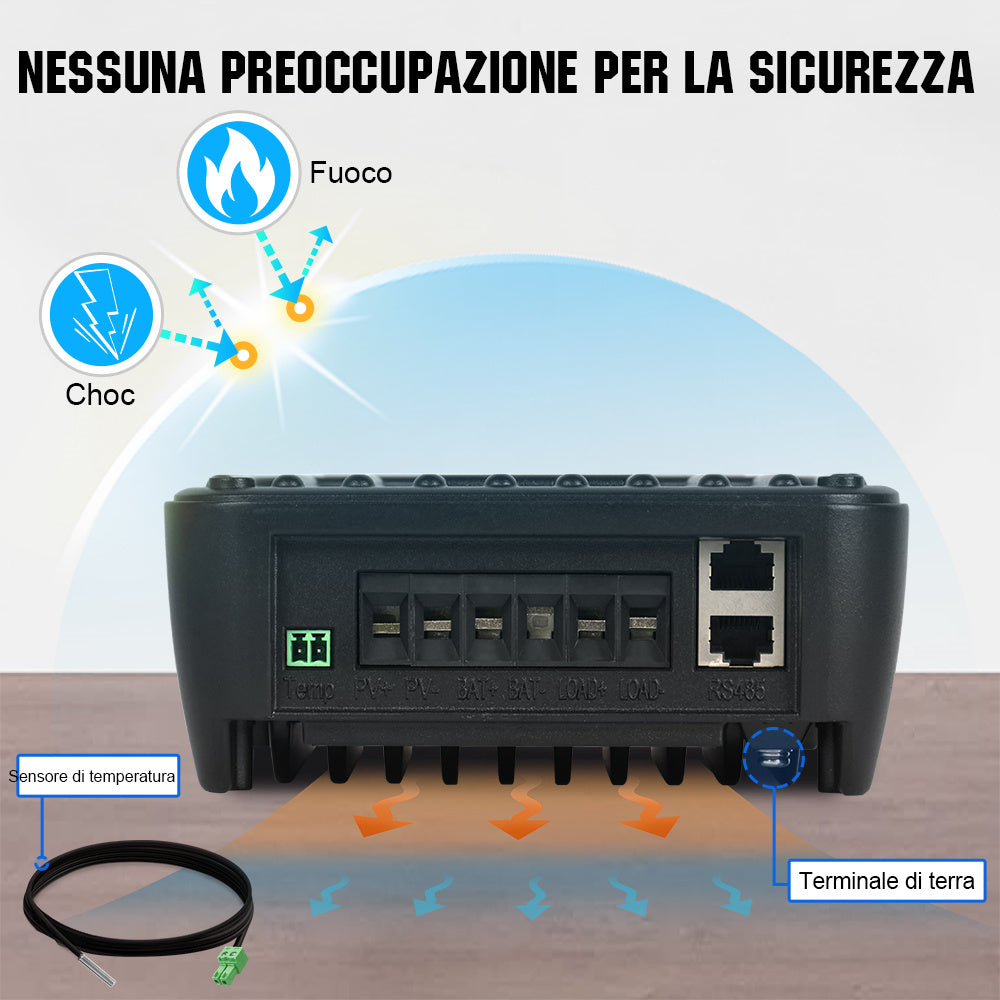

·Protezione di carica intelligente: questo regolatore di carica MPPT offre una carica a 4 stadi (Bulk, Absorption, Float ed Equalization) e dispone di un set completo di protezioni elettroniche, come la prevenzione di sovraccarico e scarica eccessiva, sovratensione del pannello solare, sovraccarico, cortocircuito e protezione da inversione di polarità.
·Monitoraggio e compensazione della temperatura: il design in alluminio pressofuso offre un'eccellente dissipazione del calore. Dotato di un sensore di temperatura remoto, il regolatore di carica MPPT può misurare la temperatura della batteria in tempo reale e utilizzare questi dati per una compensazione della temperatura estremamente accurata per garantire una carica stabile e costante.
Code:

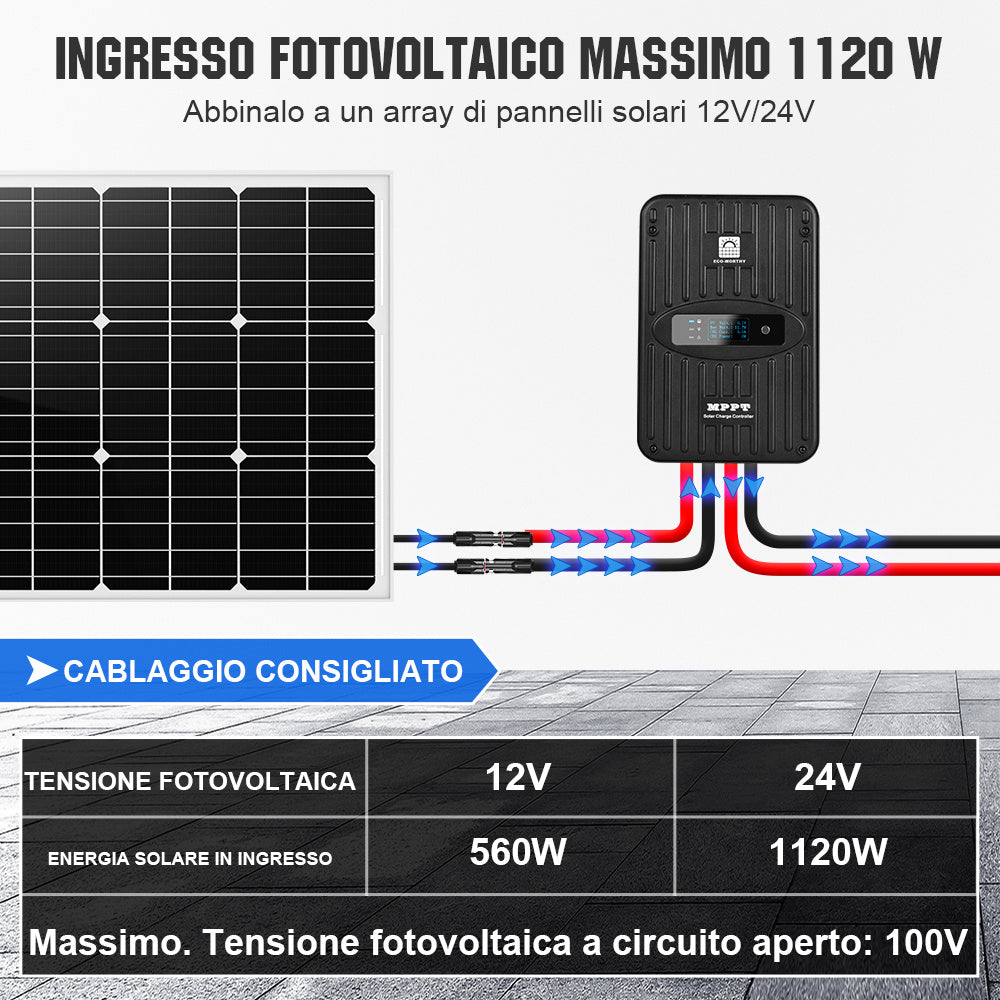

Copy CodeTensione della batteria: 12V/24V | Potenza solare massima in ingresso: 560/1120W |
Modalità di ricarica: MPPT | Corrente di carico nominale: 20A |
Efficienza di carica (picco): 97% | Autoconsumo: 1~2W |

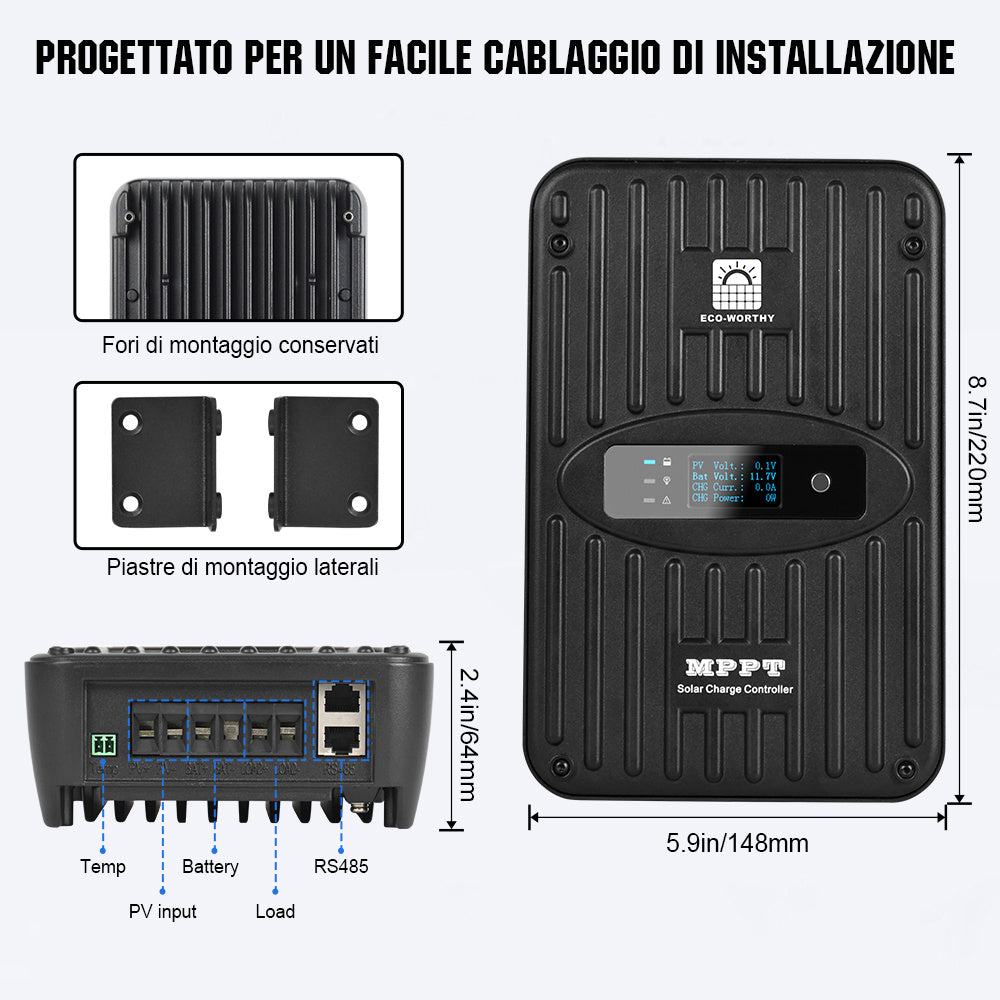

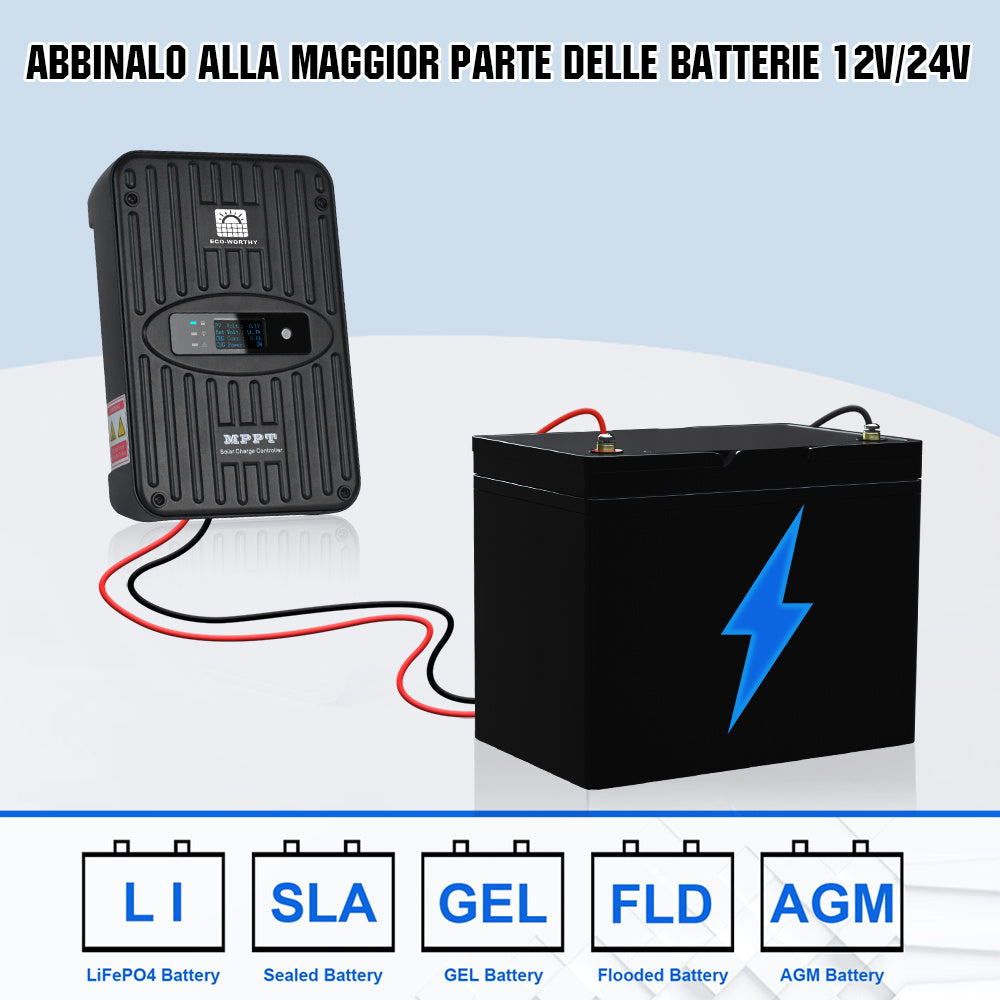

Tipo di batteria: LiFePO4, AGM, sigillato, gel, allagato | Dimensioni: 220 * 148 * 64 mm / 8.7 * 5.8 * 2.5 pollici |
Corrente di carica massima: 40A | Peso: 1.5 kg |
Tensione max.PV a circuito aperto:<100V |
