Kit Solare Off-grid da 260W e 12V Per Camper Con MPPT 12V/24V 15A

Kit solare flessibile ECO-WORTHY da 260W per sistemi 12V/24V, ideale per camper, barche e impianti off-grid. Include 2 pannelli solari flessibili da 130W in ETFE ad alta efficienza e un regolatore di carica MPPT da 15A con display LCD e comunicazione RS485. Leggero, resistente e facile da installare, garantisce prestazioni elevate anche in condizioni di scarsa luce. Compatibile con batterie LiFePO4, GEL, SLA e al piombo-acido. Perfetto per un’alimentazione autonoma e sostenibile.

Dimensioni del prodotto:
Pannello solare 130W: 960 x 690 x 2,5 mm
Regolatore MPPT 15A: 160,5 x 135 x 52,5 mm

Modello: ECO-WORTHY Kit 260W
Specifiche: Kit 260W
Materiali:PET, silicone, alluminio, acciaio inossidabile
Potenza nominale: 260 watt
Potenza massima: 260 watt

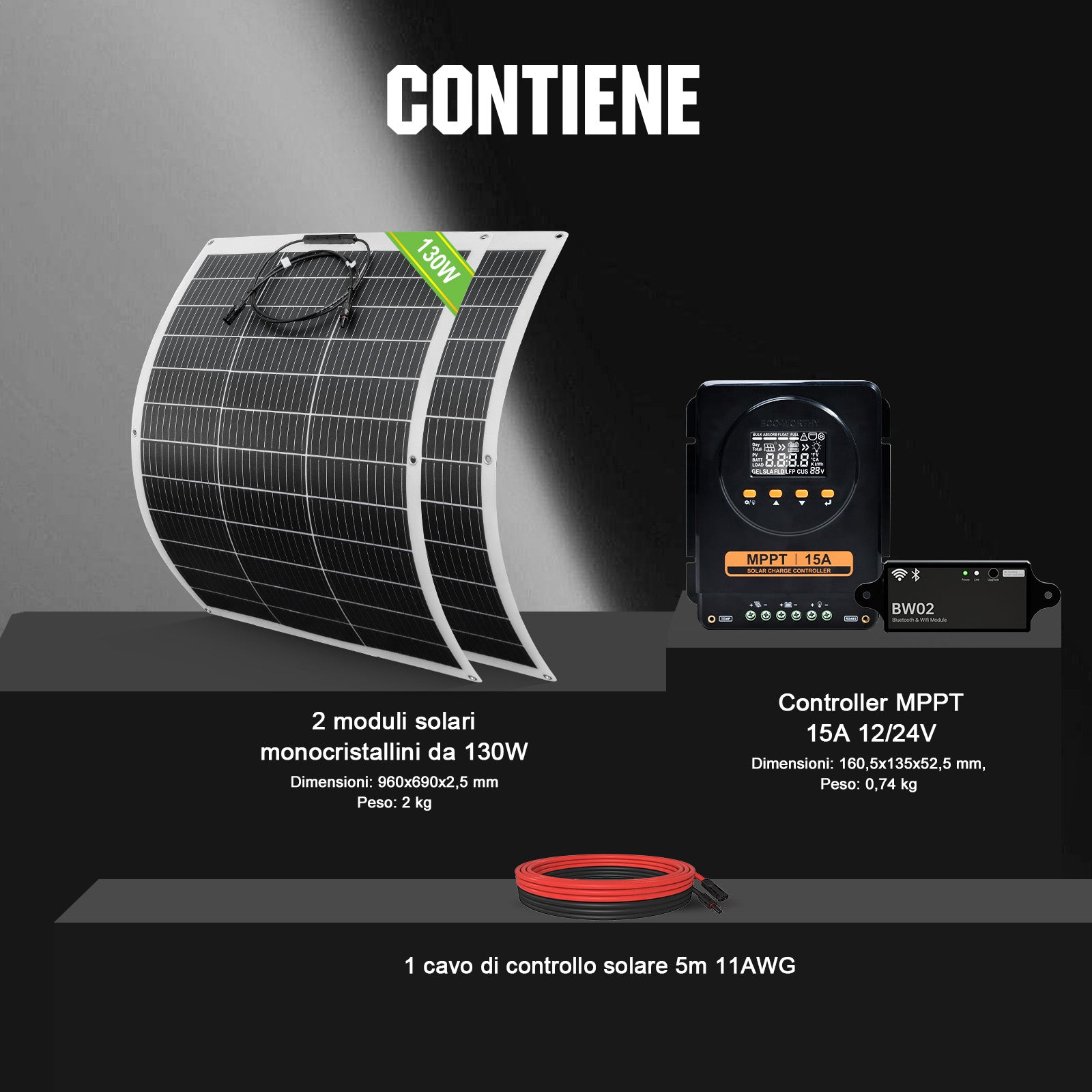

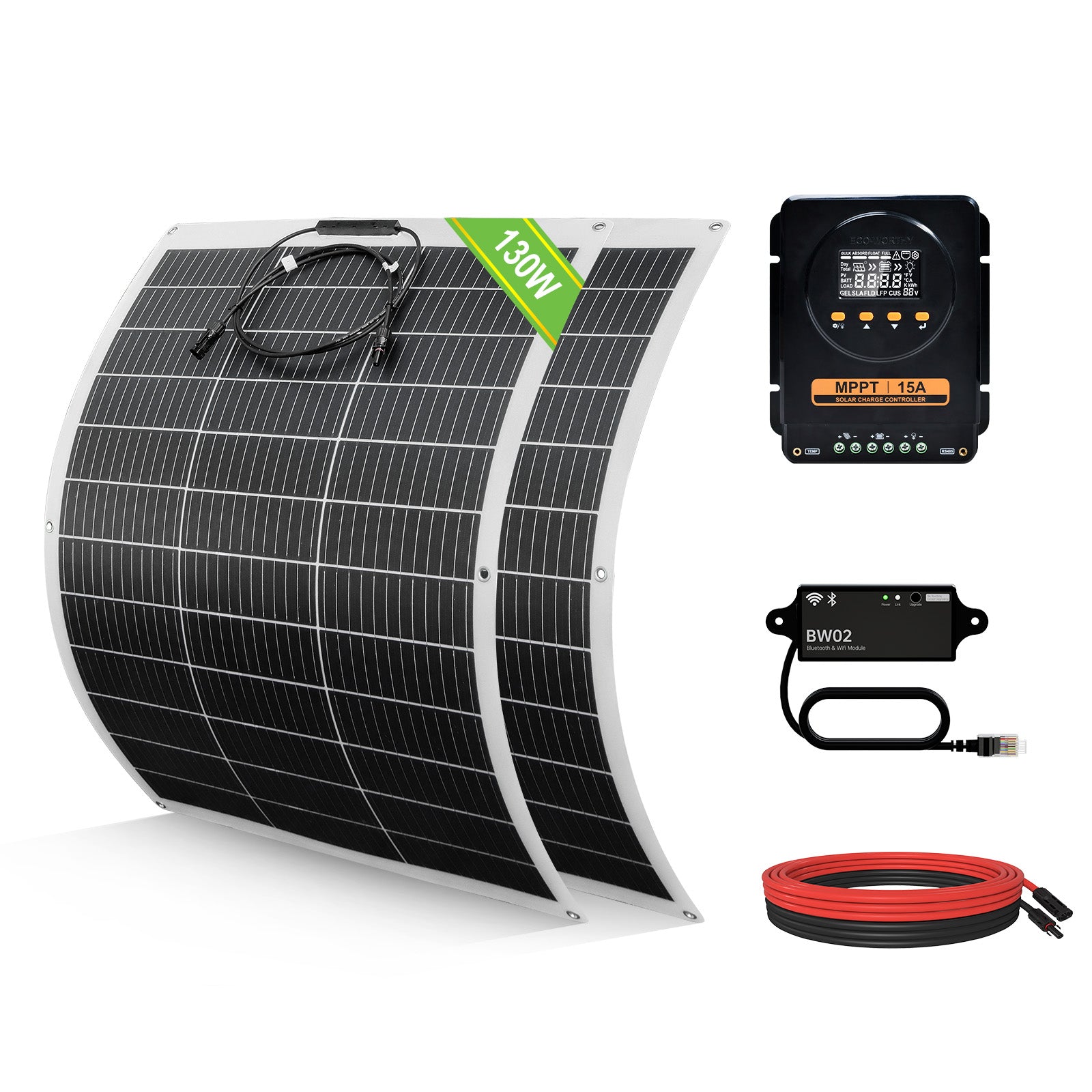

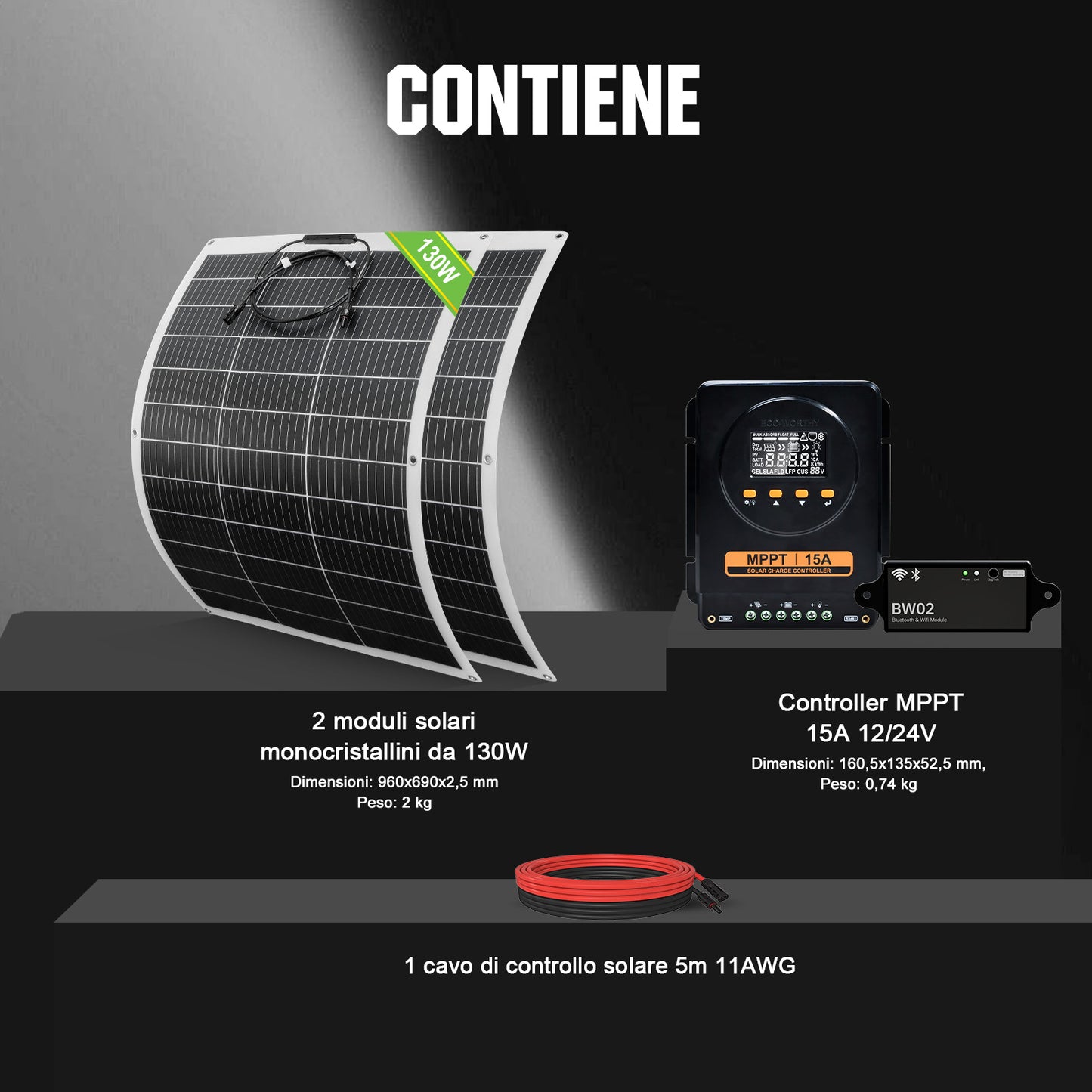

Componenti inclusi:
2 pannelli solari da 130W + display LCD,
1 regolatore di carica MPPT 15A,
cavi solari inclusi.

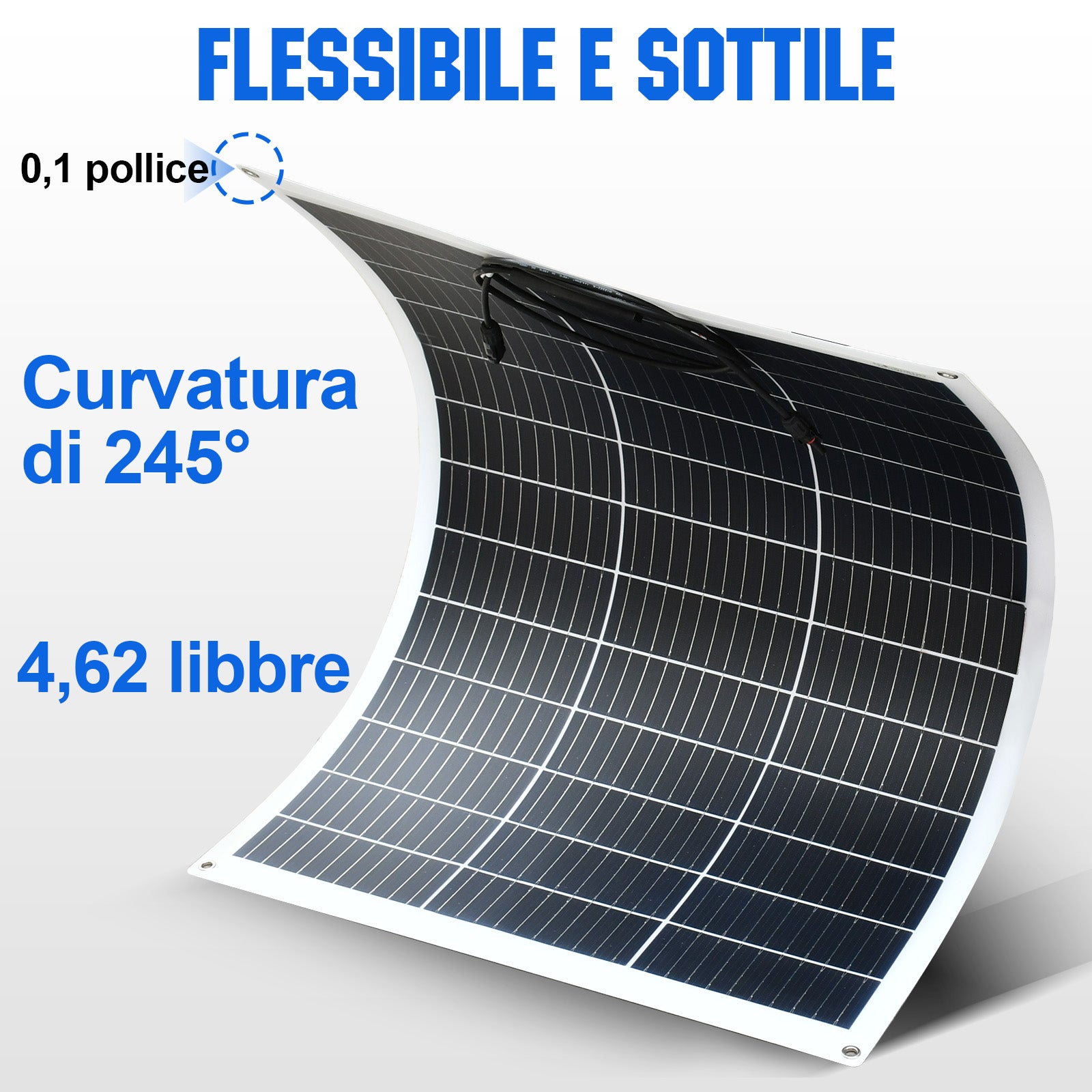

Parametri del prodotto: pannello solare mono flessibile da 130 W

Potere stimato: 130W	Cella solare: monocristallina
Tensione massima/di picco (Vmp): 21.10V	Tensione a circuito aperto (Voc): 24.50V
Corrente di cortocircuito: 6.50A	Corrente massima: 6.16A
Tolleranza di uscita: ±3%	Coefficiente Isc moderato: (010+/-0.01)%/°C
Coefficiente moderato di Voc: -(0.38+/-0.01)%/°C	Intervallo di temperatura: -40°C ~ +85°C
Dimensioni del cavo di prolunga: 4mm² (11AWG) / MC4	Lunghezza del cavo di prolunga: 90 cm
Peso: 2.0 kg	Dimensioni spina: 960 * 690 * 2.5mm

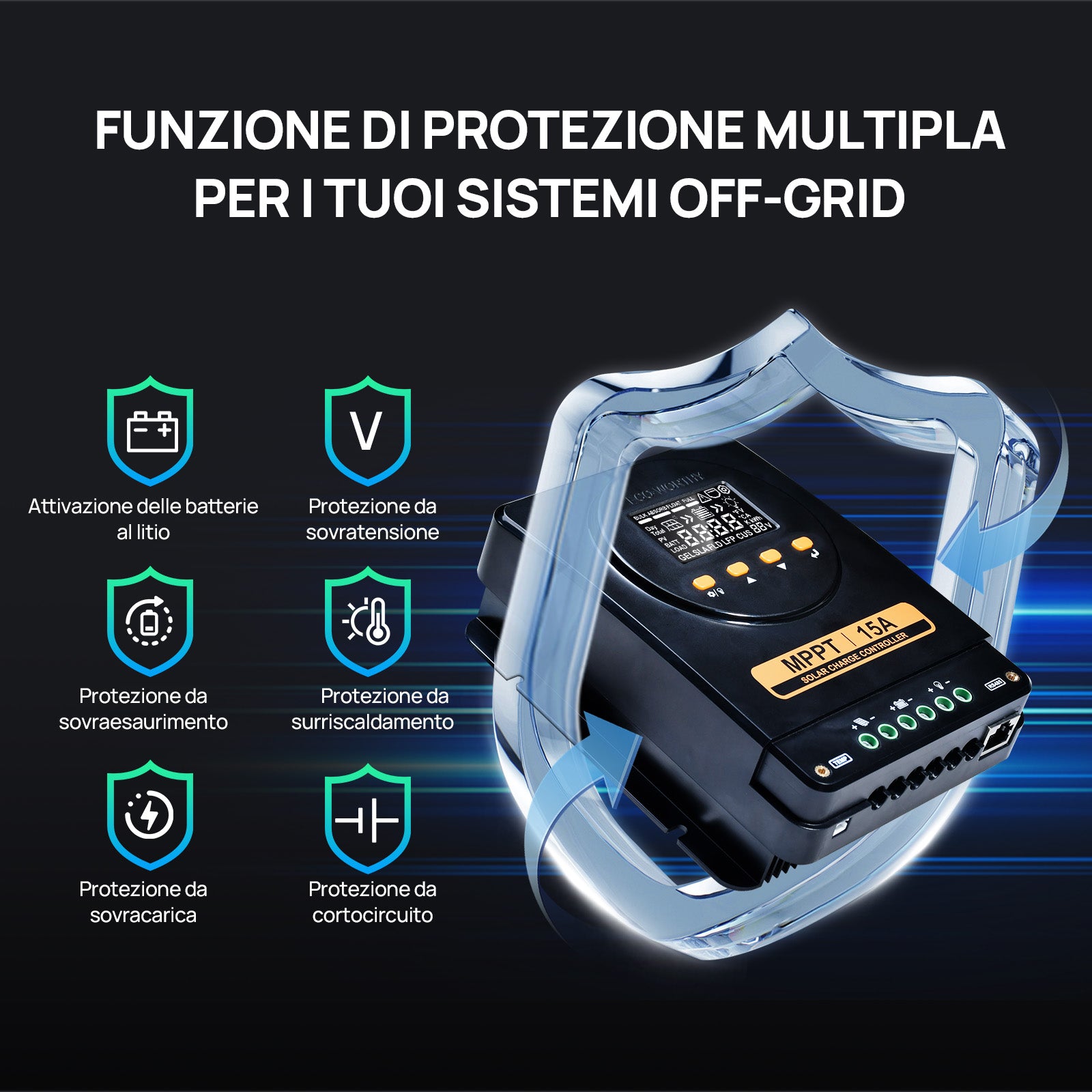

Specifiche del prodotto: regolatore di carica solare ECO-WORTHY 15A 12V/24V MPPT con LCD e Bluetooth RS485

Parametro	Dettagli
Tensione nominale del sistema	12V / 24V
Corrente nominale della batteria	15A
Corrente nominale di carica	15A
Tensione massima della batteria	32V
Tensione di ingresso massima del pannello PV	100V
Potenza di ingresso massima del sistema PV	260W (12V) / 520W (24V)
Consumo proprio	≤ 2W
Metodo di comunicazione	RS485

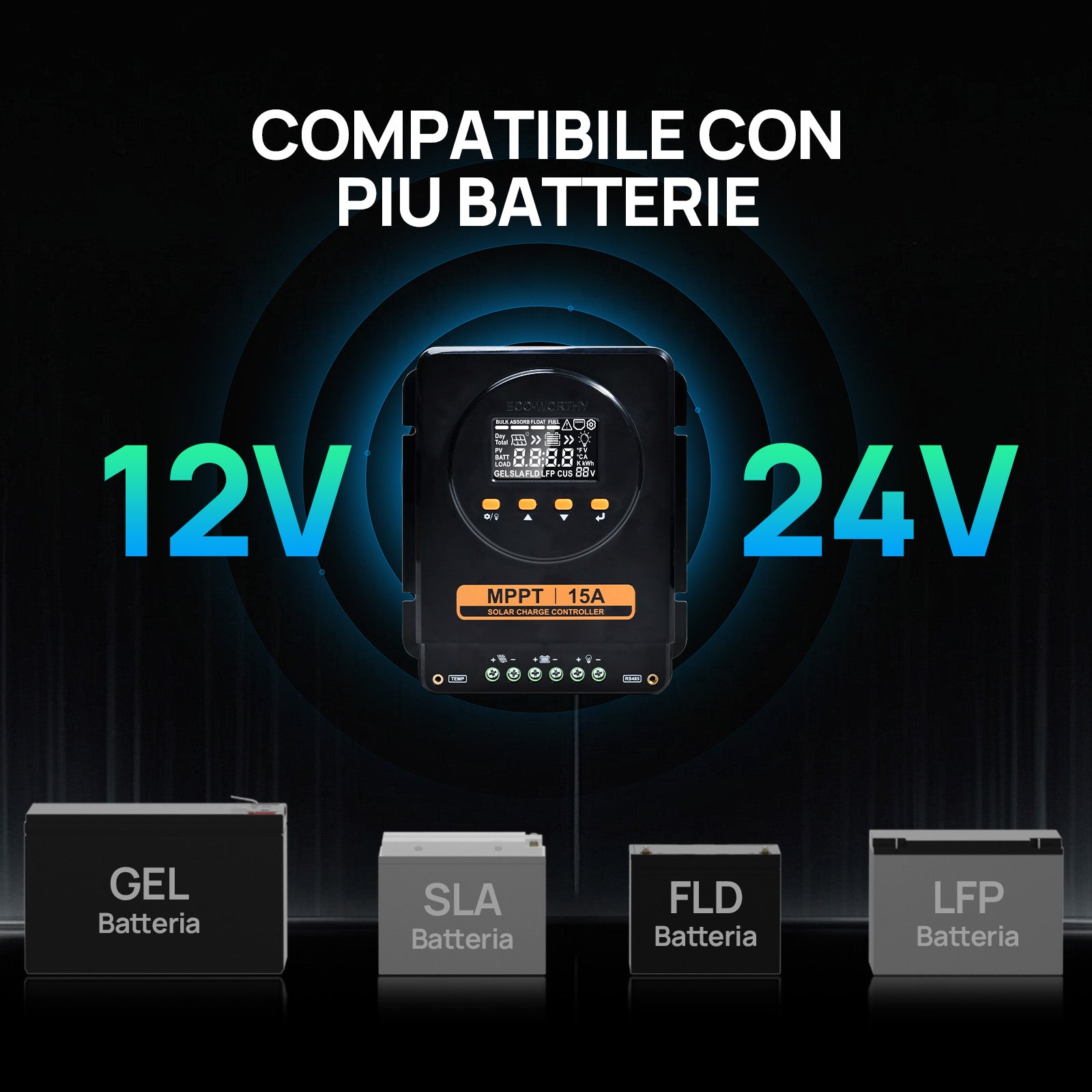

Tipi di batteria compatibili	- Fosfato di ferro e litio (LFP) - Piombo-acido a elettrolita liquido (FLD) - Piombo-acido al gel (GEL) - Piombo-acido sigillato (SLA)
Temperatura di funzionamento	Da -20°C a +60°C
Peso	0,74 kg
Dimensioni	160,5 × 135 × 52,5 mm
