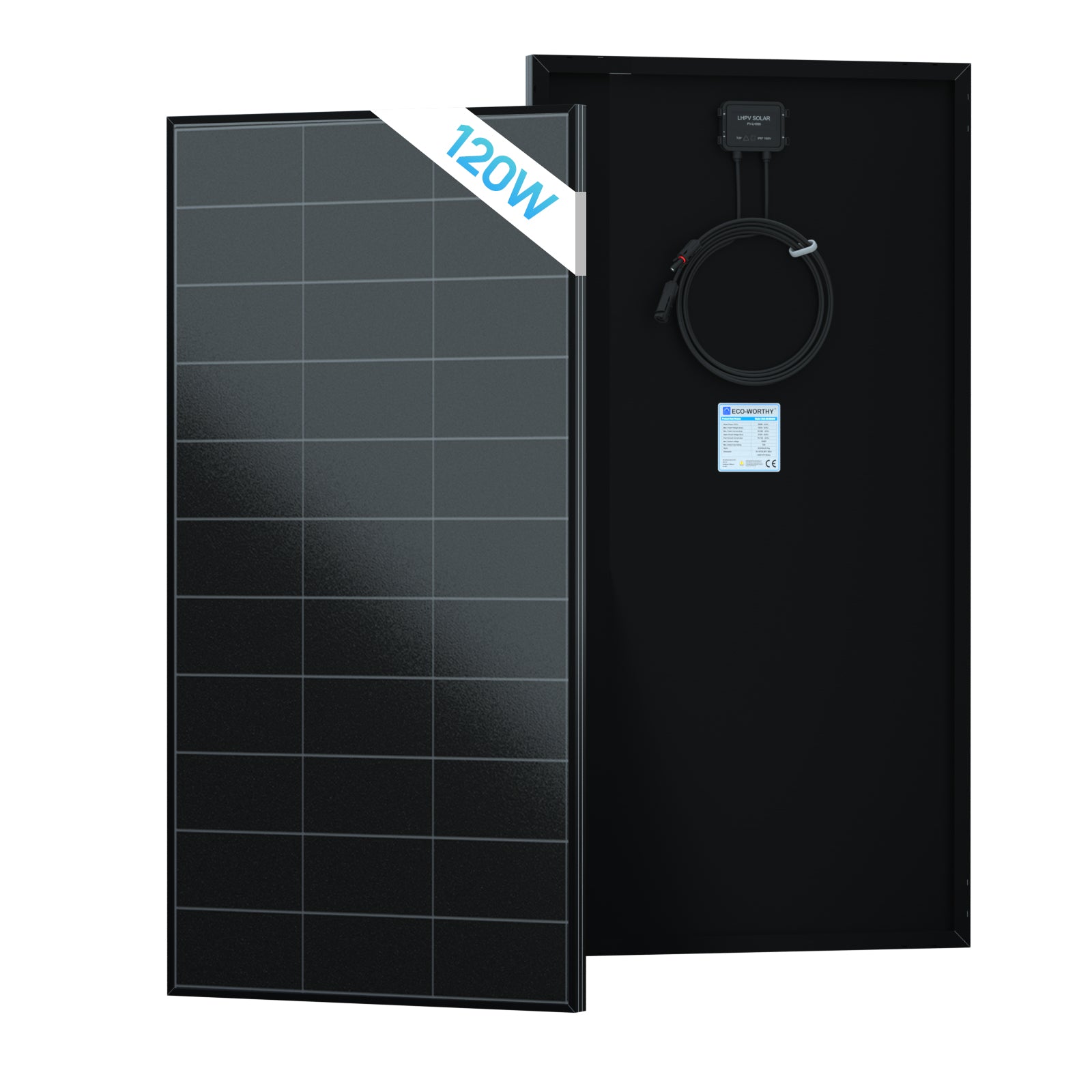

Pannello solare Full Black da 120W 12V | ECO-WORTHY, Efficienza Fino al 25%

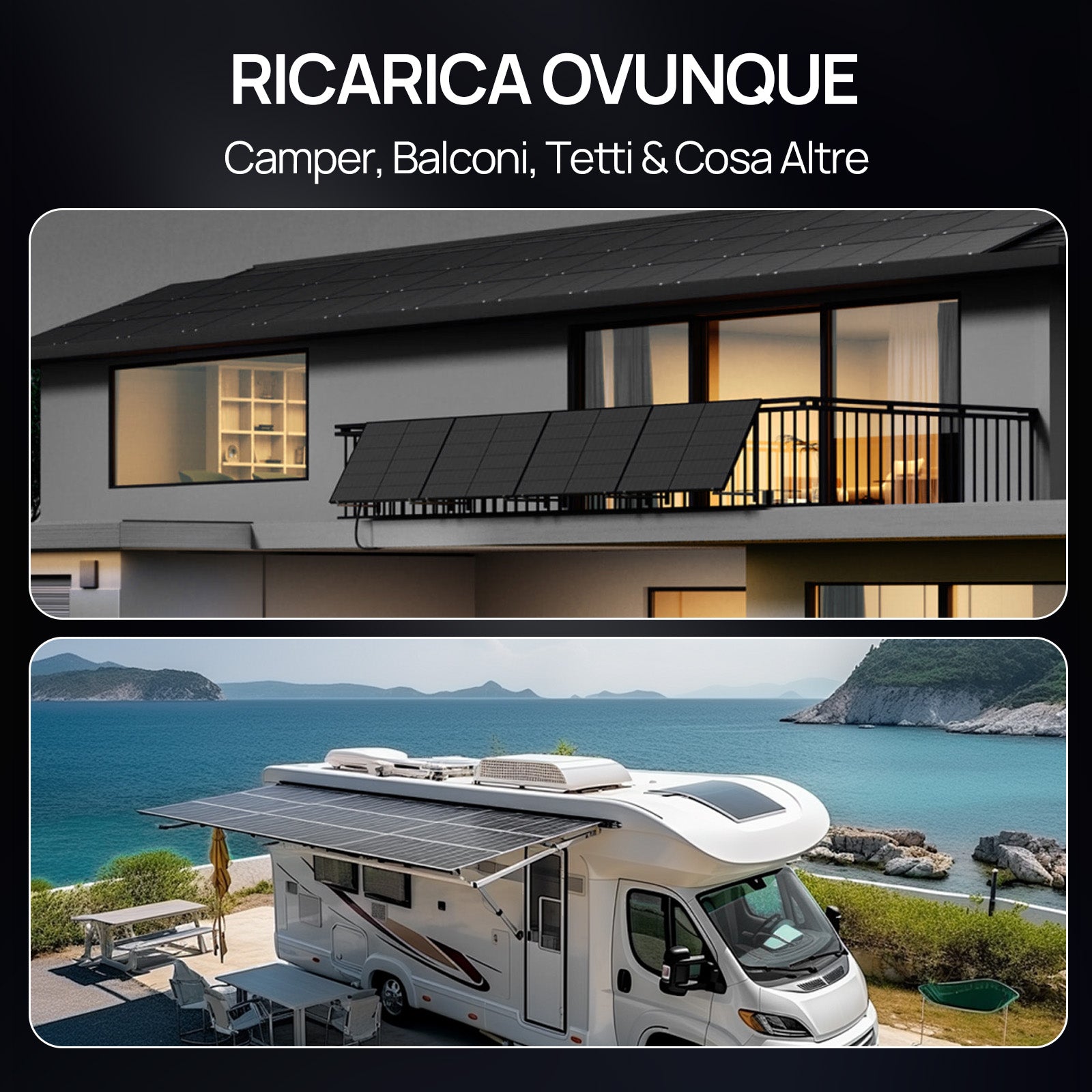

L'ultimo innovativo pannello solare bifacciale da 195W di ECO-WORTHY è tra i migliori pannelli solari per applicazioni marine e camper, offrendo una produzione di energia fino al 33% superiore rispetto ai pannelli solari tradizionali grazie al suo design bifacciale che cattura la luce solare da entrambi i lati. Dotato di celle solari monocristalline di prima qualità di grado A+, tecnologia PERC, celle semi-tagliate e rete di diodi di bypass, questo pannello solare monocristallino garantisce un'elevata efficienza delle celle solari e una resa del pannello solare elevata. È un'ottima opzione in grado di fornire energia anche nelle condizioni ambientali più difficili.

Specifiche Tecniche – Pannello Solare Full Black 120W ECO-WORTHY

Categoria	Dettagli tecnici
Numero di parte	L02BC120-1
Numero di modello	120W BC
Stile	120W
Materiali	Silicio cristallino, vetro temperato, alluminio
Peso dell’articolo	7,5 kg
Dimensioni del prodotto	104,5 × 58 × 3,5 cm
Componenti inclusi	Cavo, fori per la messa a terra



Caratteristiche elettriche

Parametro	Valore
Potenza massima – Pmax [W]	120
Tensione alla massima potenza – Vmp [V]	19,8
Corrente alla massima potenza – Imp [A]	6,07
Tensione a circuito aperto – Voc [V]	24,22
Corrente di cortocircuito – Isc [A]	6,43

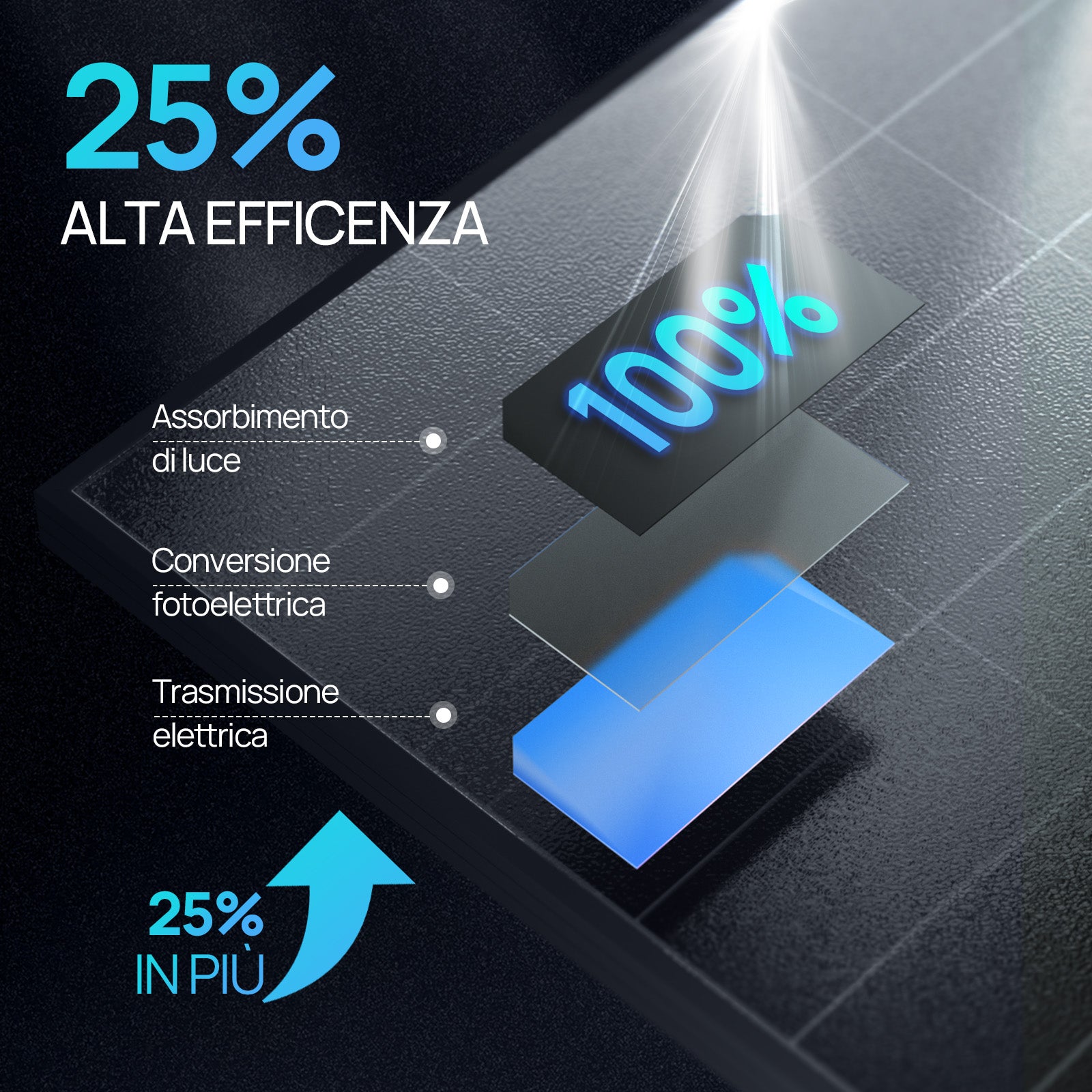

Efficienza del modulo (STC) [%]	25,0
Tolleranza di potenza	0 ~ +3 %
Coefficiente di temperatura di Pmax	~0,35 %/°C
Coefficiente di temperatura di Voc	~0,29 %/°C
Coefficiente di temperatura di Isc	0,05 %/°C
Tensione massima di sistema	1000 V CC
Corrente massima del fusibile in serie	10 A



Parametri meccanici

Parametro	Valore

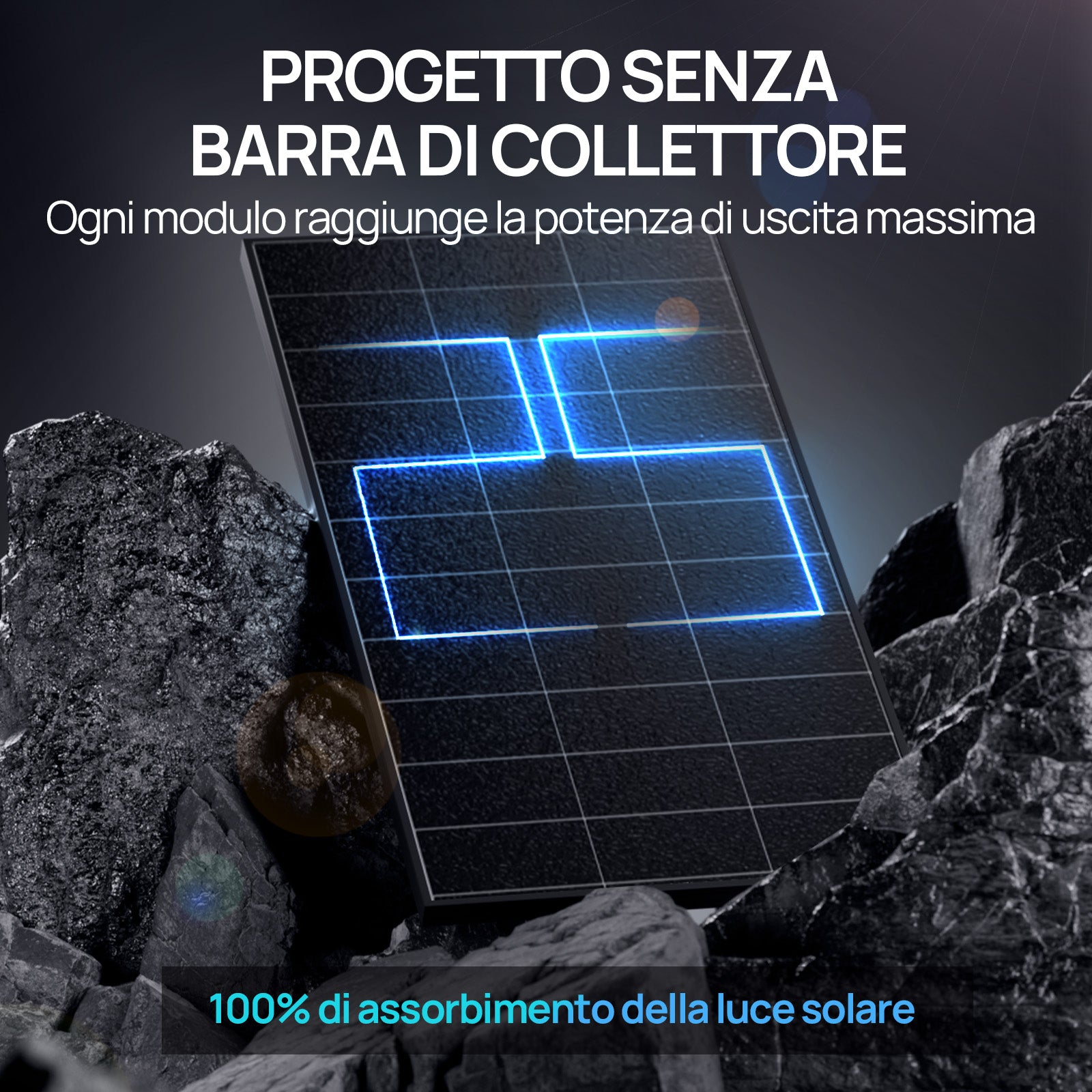

Tipo di cella	HPBC
Numero di celle	33 (3×11)

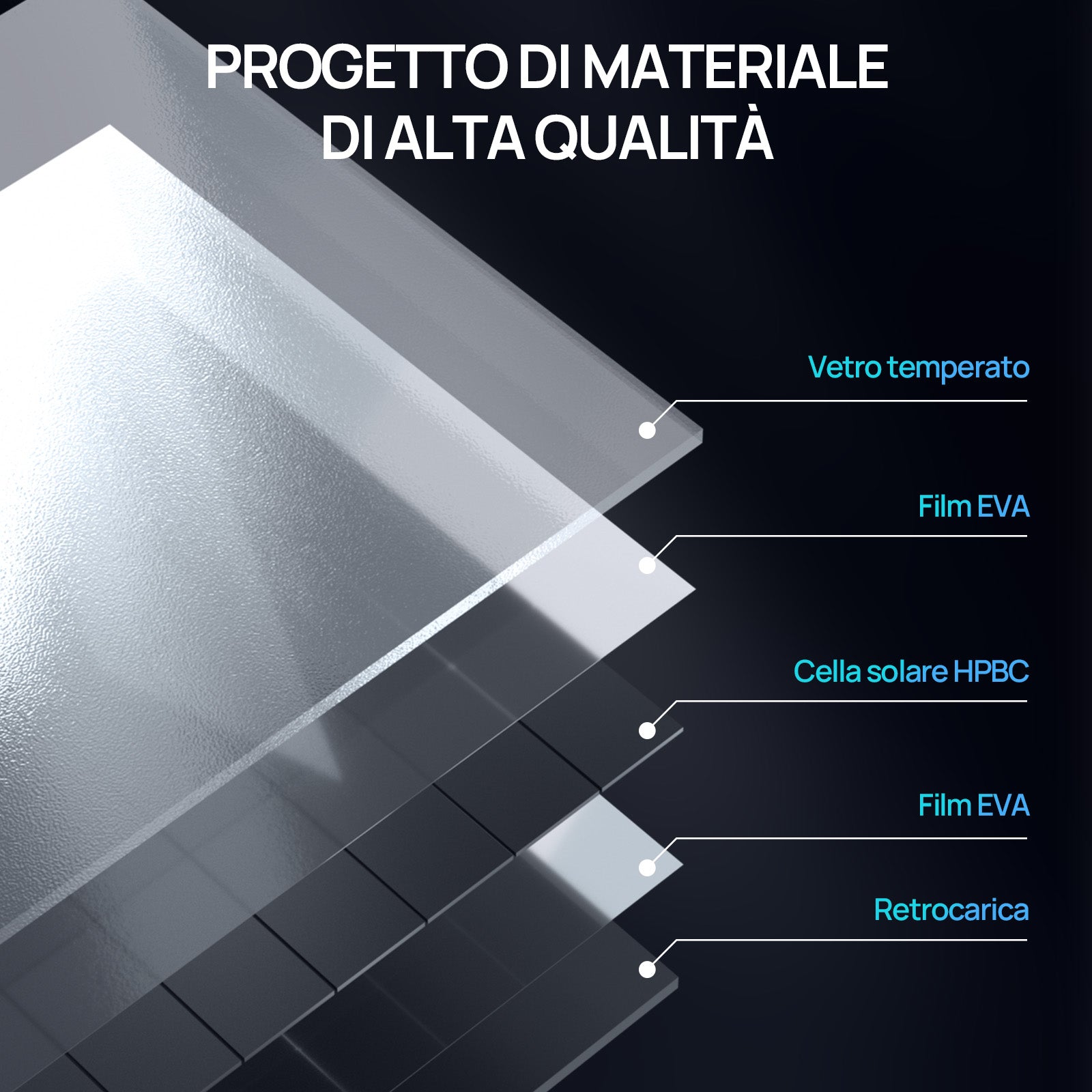

Vetro frontale	Vetro temperato 3,2 mm, alta trasmissione, rivestimento AR
Telaio	Lega di alluminio

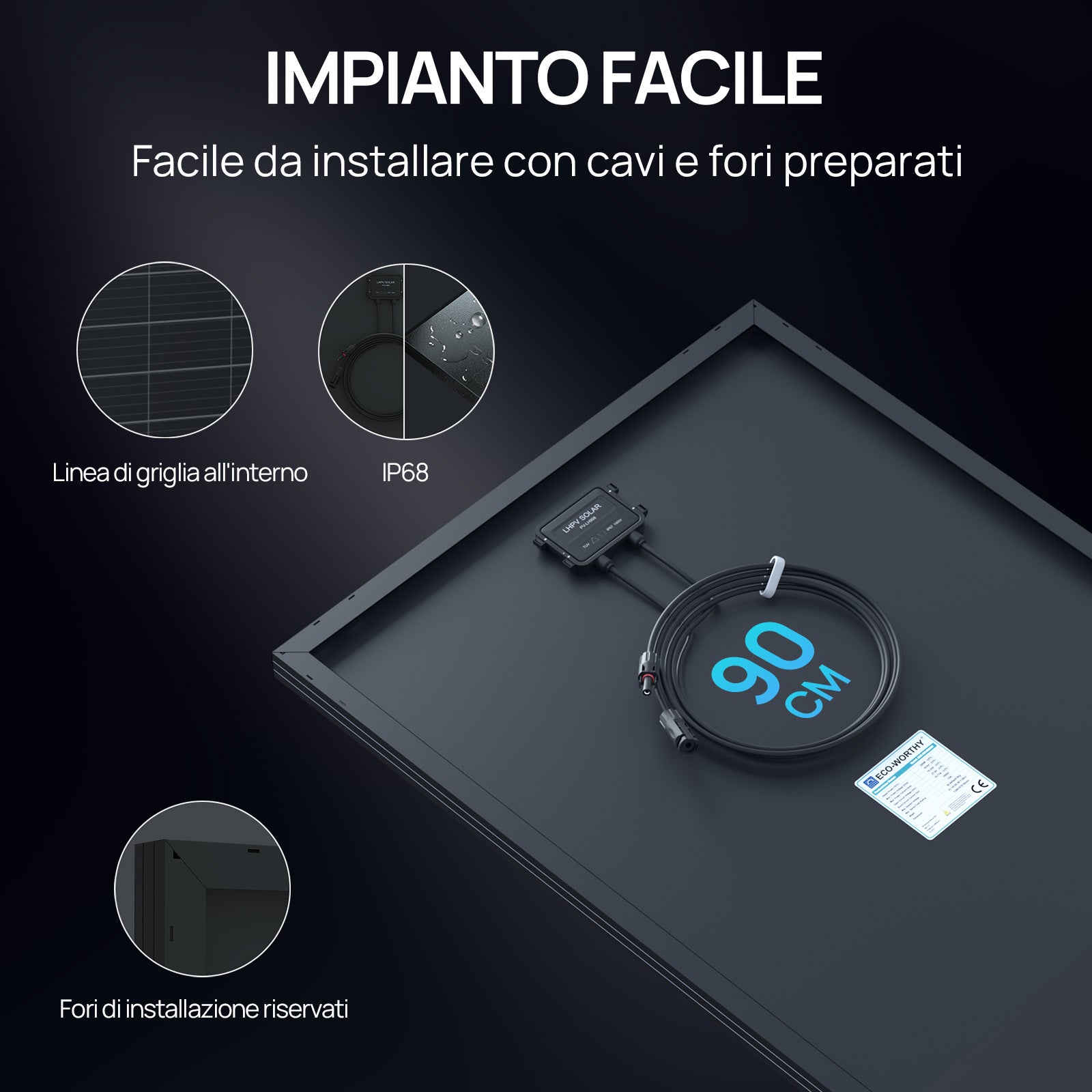

Scatola di giunzione	IP67
Numero di diodi	2
Classe di protezione	Classe II
Classe di resistenza al fuoco	Classe C
Tipo di connettore	Classe C
Cavo di uscita	4 mm², 900 mm (con connettori)

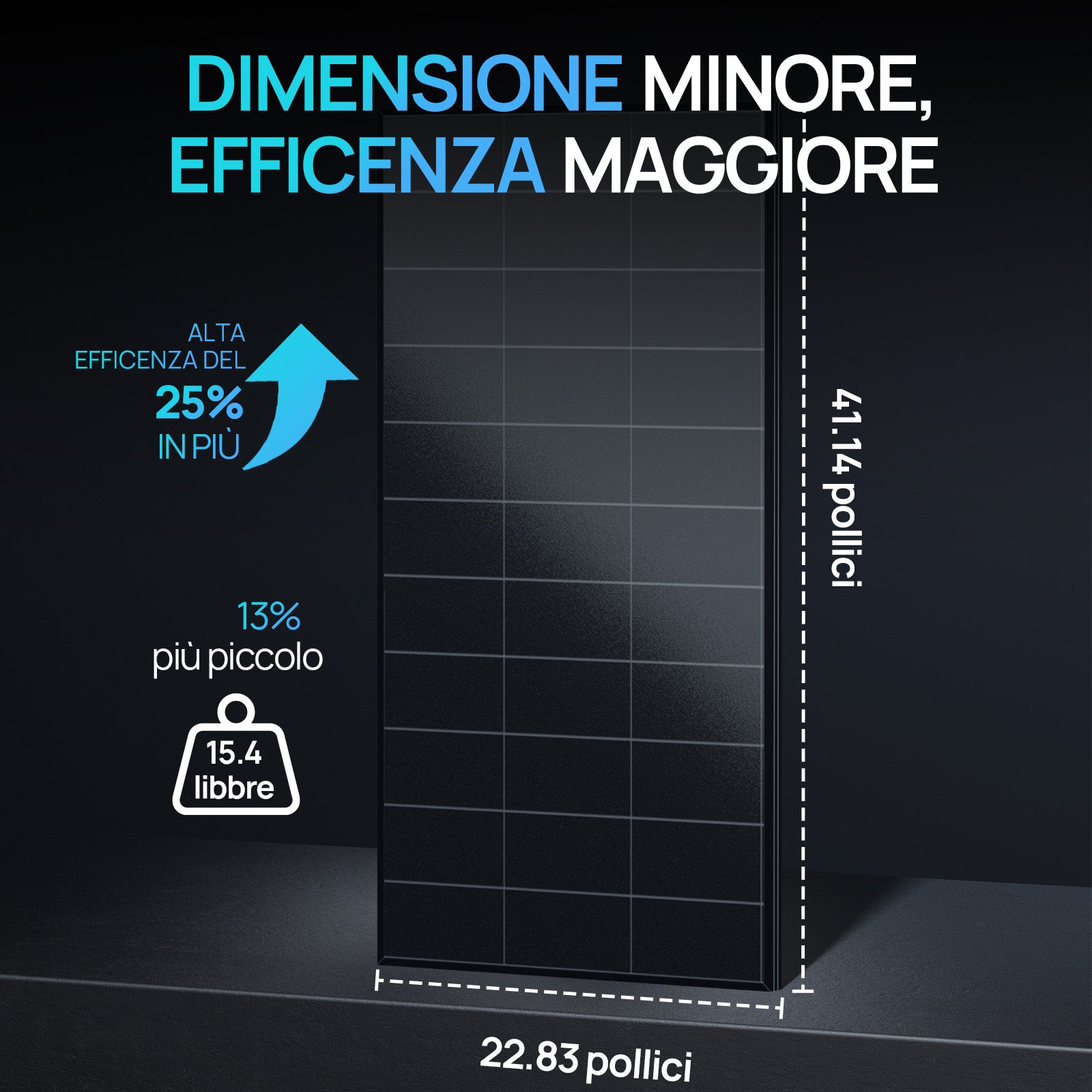

Dimensioni	1045 × 580 × 35 mm / 41,14 × 22,83 × 1,38 pollici
Peso	7,0 kg
Temperatura di esercizio	-40 °C ~ +85 °C
